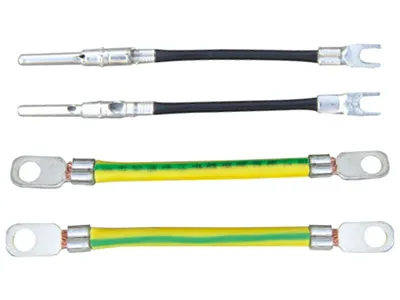

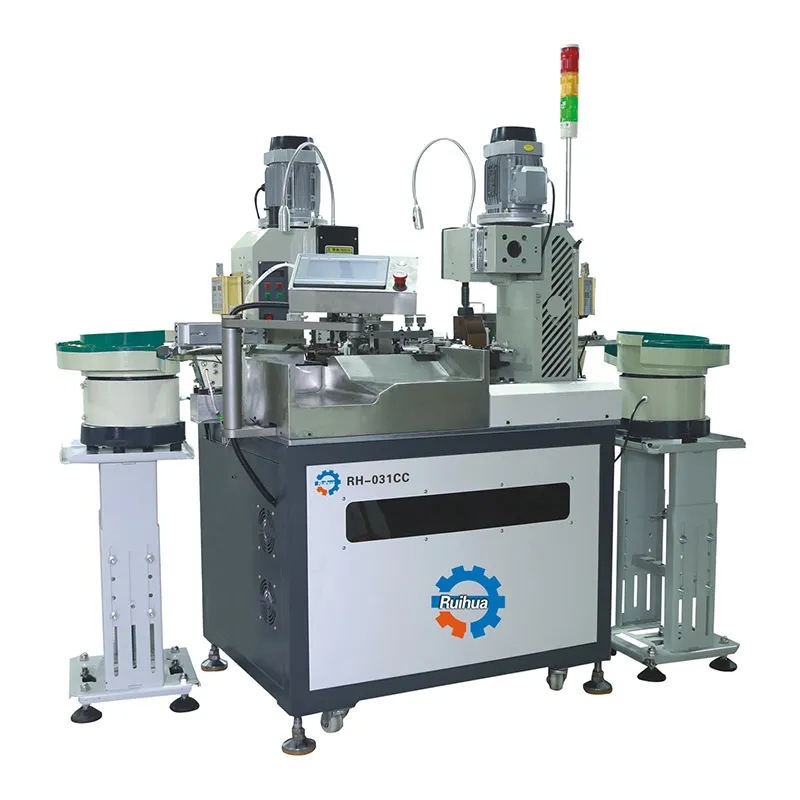

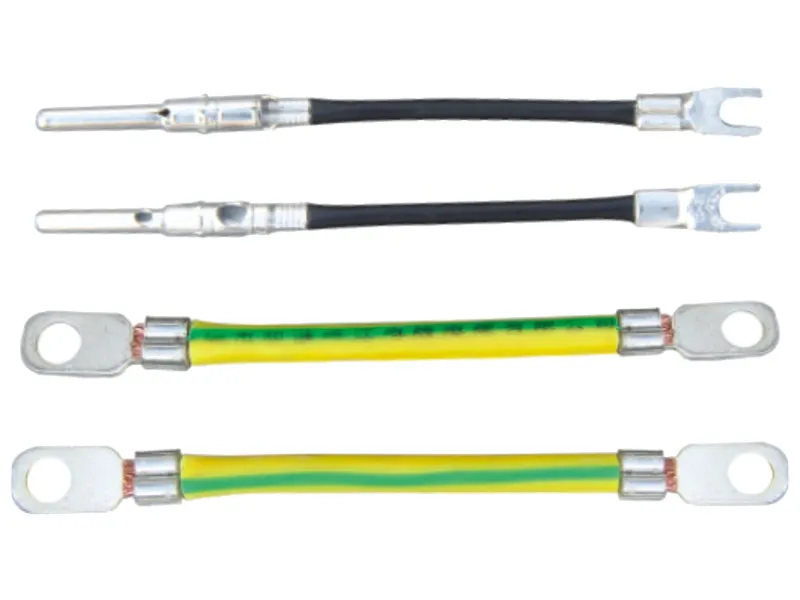

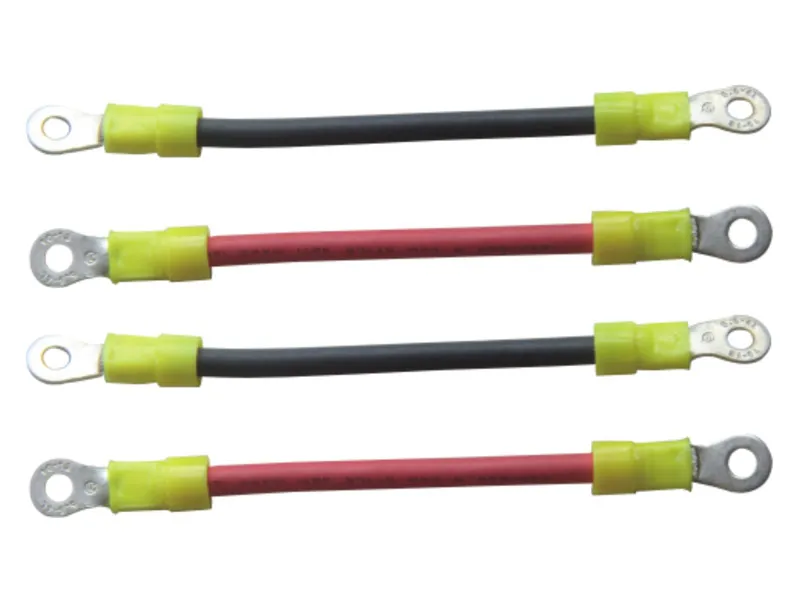

Our two-sided cold-pressed terminal crimping machines are designed for cutting, stripping, and crimping large-diameter wires. It supports single and dual-end configurations and is compatible with photovoltaic grounding wires, RV circular pre-insulated terminals, Y-shaped terminals, and automotive battery cables. These wire terminating machines are capable of handling both loose and pre-loaded terminals makes it a versatile option for demanding production environments.
| General | Model | RH-031CC |
|---|---|---|
| Dimensions (L×W×H) | 1200×800×1500mm | |
| Weight | 400kg | |
| Power Supply | AC220V 50Hz | |
| Rated Current | 10A | |
| Power | 3kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 1.5×1.5m | |
| Crimping Force | 3T | |
| Functions | Crimping Capacity | 2200 wires/hr at 100mm length (depending on the wire length) |
| Wire Processing | Wire cutting, One-sided stripping, Two-sided stripping, One-sided crimping, Two-sided crimping, One-sided crimping + one-sided stripping | |
| Control System | LCD display, single-chip microcontroller | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Operation Control | Wire feeding, cutting, stripping and movement are controlled via touch screen, with servo control | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure |
| Application Range | Cutting Length | 80mm-690mm |
| Stripping Length | Front: 1mm-15mm, Rear: 1mm-15mm | |
| Wire & Cable Type | Electric wire, high temperature cable, halogen-free cable, Teflon insulated cable, silicone insulated cable (AWG22#-AWG10#) |
Equipped with a servo motor to ensure precise positioning, fast operation, and consistent accuracy, delivering reliable results for large-diameter wire processing.
The vibration feeding system automates the delivery of loose terminals, reducing labor costs and optimizing efficiency.
Supports both loose terminals and pre-loaded terminals, providing flexibility for diverse production requirements.
Real-time fault detection with alerts displayed on a touch screen simplifies troubleshooting and maintains uninterrupted operation.
Several senior R&D engineers with more than ten years of experience in wiring harness processing.
Reliable equipment designed to optimize automation and efficiency in wire harness production.
Backed by more than 10 years of experience, we specialize in designing and manufacturing innovative wire processing equipment tailored to meet evolving industry needs.
Customizable features and modifications address unique production requirements across various industries.
