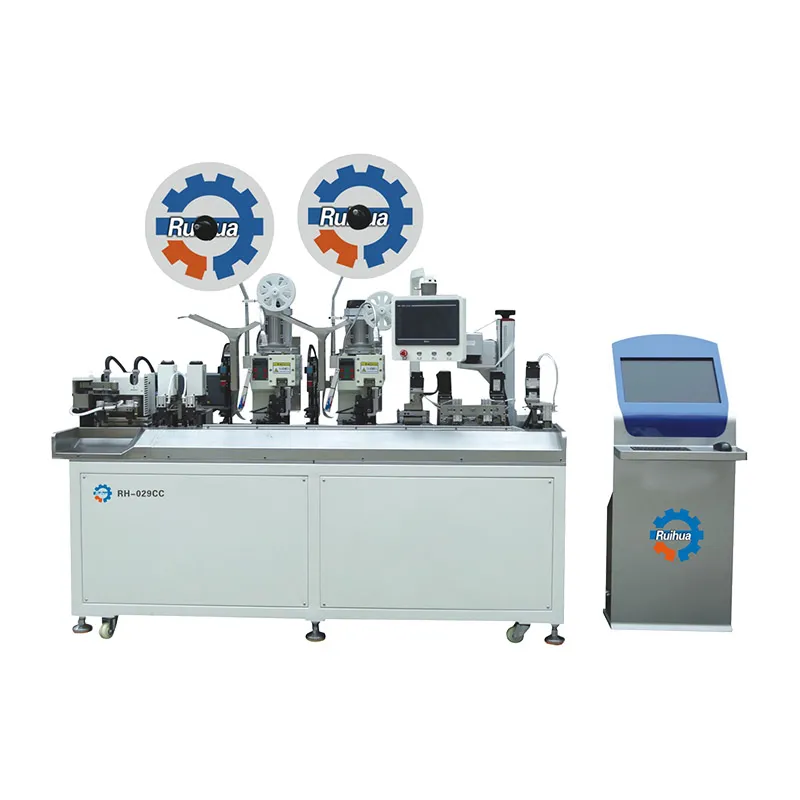

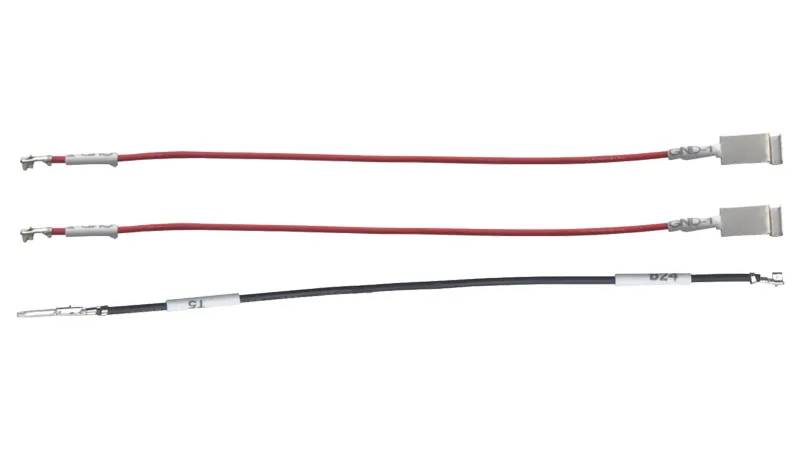

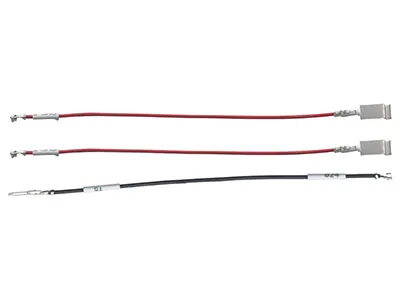

This wire terminating equipment is engineered for efficient processing of long wires over 270mm, integrating tasks such as cutting, stripping, crimping, and heat shrink tube marking into one seamless workflow. Designed for dual-end operations, this cut, strip and terminate machine supports applications such as heat shrink tube insertion, terminal crimping, and twisting. With synchronized operations, it provides consistent results while enhancing production speed and flexibility.
| General | Model | RH-029CC |
|---|---|---|
| Dimensions (L×W×H) | 2120×770×1600mm | |
| Weight | 750kg | |
| Power Supply | AC220V 50Hz | |
| Rated Current | 20A | |
| Power | 6.5kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 1×2.2m | |
| Crimping Force | 2T | |
| Functions | Crimping Capacity | 2000-2700 wires/hr (depending on the wire length) |
| Wire Processing | Wire cutting, One-sided stripping, Two-sided stripping, One-sided crimping, Two-sided crimping, One-sided crimping + one-sided heat shrink tube insertion, One-sided crimping and heat shrink tube insertion + one-sided stripping, Two-sided crimping + two-sided heat shrink tube insertion | |
| Control System | LCD display, single-chip microcontroller | |
| Die Change | OTP crimping applicator, easy and quick die changing | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Operation Control | Wire feeding, cutting, stripping and movement are controlled via touch screen | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure |
| Application Range | Cutting Length | 270-9999mm |
| Cable Marking Tube Size | Length: 12-25mm, Diameter: Ø2.5-Ø6mm | |
| Stripping Length | Front: 0.1-12mm, Rear: 0.1-12mm | |
| Wire & Cable Type | Electric wire, high temperature cable, Teflon insulated cable (AWG14#-AWG26#) |
The U-shaped motion system enables simultaneous operations, including stripping, twisting, tube insertion, terminal crimping, and tube heating. It delivers fast, coordinated actions with a capacity of 2,000–2,700 wires per hour, ensuring high efficiency.
An integrated fault detection system provides real-time alerts displayed on a touch screen, enabling operators to quickly identify and resolve issues, minimizing downtime and ensuring smooth operation.
