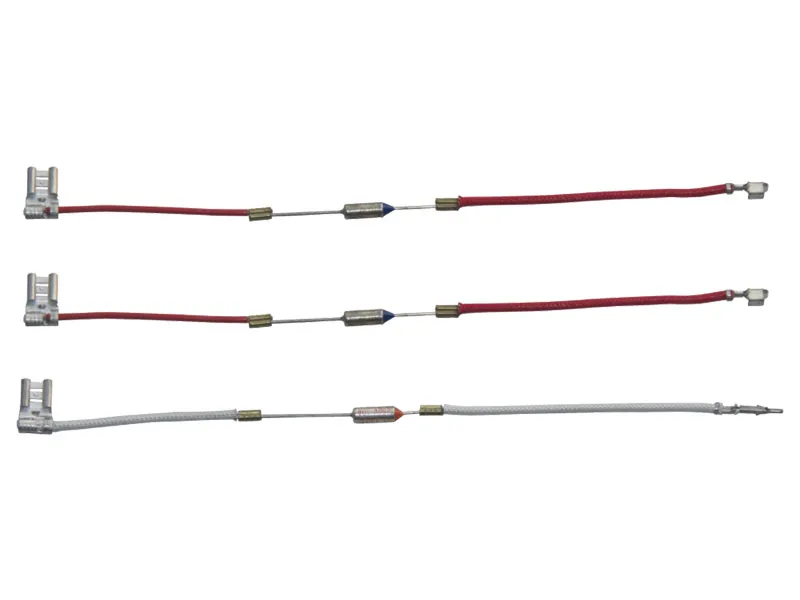

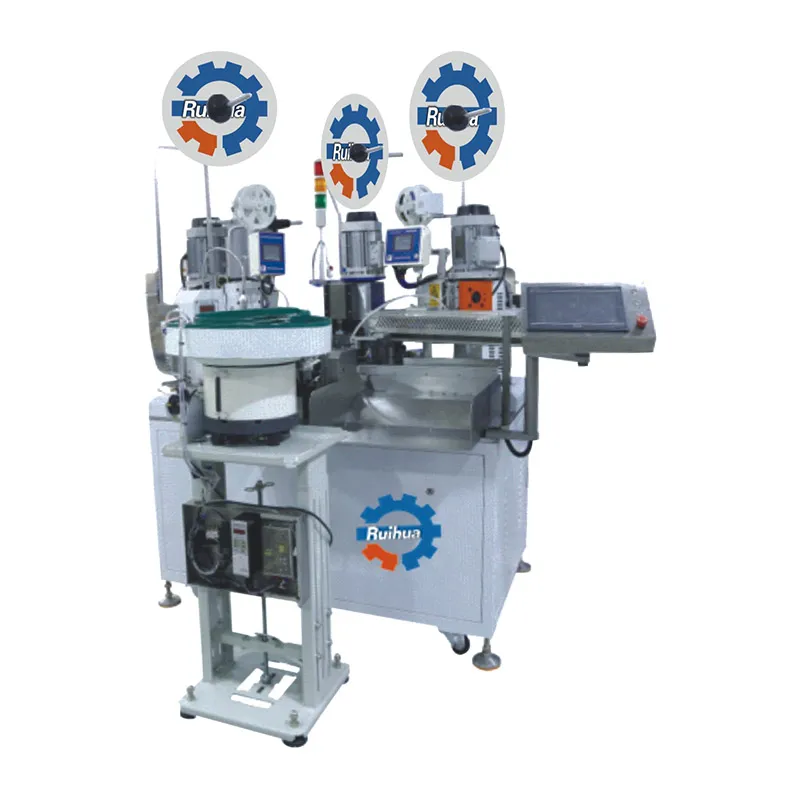

This thermal fuse crimping and heat shrinking equipment combines tasks such as dual-end crimping, single-end stripping, heat shrinking, and fuse pin cutting into a seamless workflow. It is compatible with a wide range of thermal fuses, including G2, G5A01, SF119PDHR, RY121TF, RY110TF, and SFH113E, and supports 18AWG-26AWG wires made from PVC, Teflon, and halogen-free materials. Whether assembling high-temperature wiring or intricate fuse connections, it ensures efficiency and adaptability for demanding production lines.
| General | Model | RH-030CC |
|---|---|---|
| Dimensions (L×W×H) | 1400×935×1600mm | |
| Weight | 750kg | |
| Power Supply | AC220V 50Hz | |
| Rated Current | 15A | |
| Power | 5kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 1×2.2m | |
| Crimping Force | 3T | |
| Functions | Crimping Capacity | 1300-1500 wires/hr (depending on the wire length) |
| Wire Processing | Wire cutting, One-sided stripping, Two-sided stripping, One-sided crimping, Two-sided crimping, One-sided crimping + one-sided stripping and thermal fuse crimping, Two-sided crimping and heat shrink tube insertion Two-sided stripping and thermal fuse crimping | |
| Control System | LCD display, single-chip microcontroller | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Operation Control | Wire feeding, cutting, stripping and movement are controlled via touch screen | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure |
| Application Range | Cutting Length | Leaving glue space 40-500mm |
| Stripping Length | Front: 0.1-13mm, Rear: 0.1-13mm | |
| Wire & Cable Type | Electric wire, high temperature cable, Teflon insulated cable (AWG18#-AWG26#) |
Servo motor technology provides precise positioning and fast processing speeds, ensuring consistent results for wire crimping, stripping, and fuse assembly.
Fuse pins are automatically cut to customizable lengths ranging from 8mm to 30mm, offering flexibility for various production needs.
Adaptable to 18AWG-26AWG wires, the thermal fuse crimping machine processes PVC, Teflon, and halogen-free materials, accommodating a variety of applications with ease.
The real-time error monitoring system displays alerts on a touch screen, simplifying troubleshooting and maintaining smooth operation.
Several senior R&D engineers with more than ten years of experience in wiring harness processing.
Reliable equipment designed to optimize automation and efficiency in wire harness production.
Backed by more than 10 years of experience, we specialize in designing and manufacturing innovative wire processing equipment tailored to meet evolving industry needs.
Customizable features and modifications address unique production requirements across various industries.
