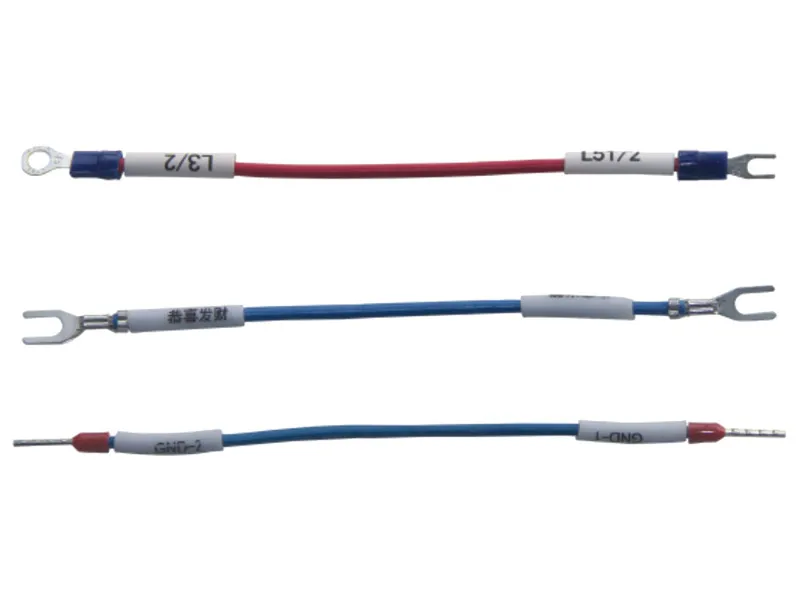

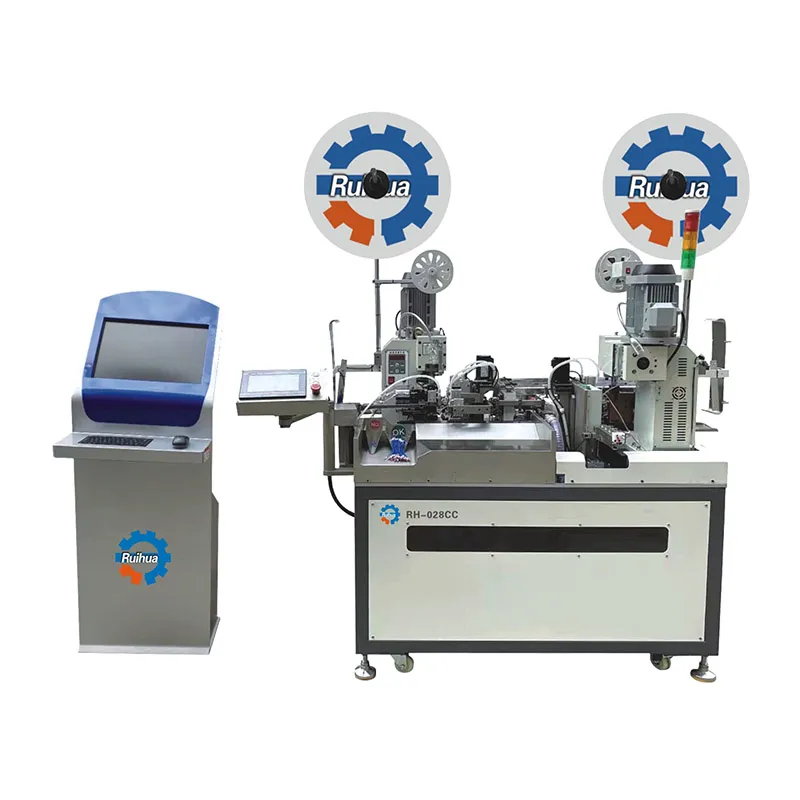

Designed to meet the needs of industries requiring precise and durable wire harnesses, this cable terminating machine combines cold-pressed terminal crimping with marking functionality. It supports operations such as two-sided crimping, single-sided crimping, half stripping, and inserting identification sleeves with laser-engraved markings. Ideal for automotive, rail transit, and distribution cabinet applications, it processes wires with precision and consistency while allowing custom text or patterns to be saved for future use.
| General | Model | RH-028CC |
|---|---|---|
| Dimensions (L×W×H) | 1300×770×1550mm | |
| Weight | Approx. 400kg | |
| Power Supply | AC220V 50Hz | |
| Rated Current | 15A | |
| Power | 4kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 1×1.5m | |
| Crimping Force | 2T | |
| Functions | Crimping Capacity | 800-1200 wires/hr at 100mm length (depending on the wire length) |
| Wire Processing | Wire cutting, One-sided stripping, Two-sided stripping, One-sided cold-pressed terminal crimping, Two-sided cold-pressed terminal crimping, One-sided cold-pressed terminal crimping + one-sided stripping, Two-sided cold-pressed terminal crimping + two marking tubes insertion, Two-sided cold-pressed terminal crimping + one marking tube insertion, One-sided cold-pressed terminal crimping + one marking tube insertion | |
| Control System | LCD display, single-chip microcontroller | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Operation Control | Wire feeding, cutting, stripping and movement are controlled via touch screen, with servo control | |
| Pressure Measuring Device | Used to measure terminal crimping pressure (optional based on customer's request) | |
| Application Range | Cutting Length | 68-999mm (two-sided insertion), 48-999mm (one-sided insertion) |
| Stripping Length | Front: 0.1mm-12mm, Rear: 0.1mm-12mm | |
| Wire & Cable Type | Electric wire, high temperature cable, halogen-free cable, Teflon insulated cable (AWG14#-AWG24#) |
The servo motor ensures precise positioning, high processing speeds, and consistent accuracy, making it suitable for cold-pressed terminal crimping and marking tasks.

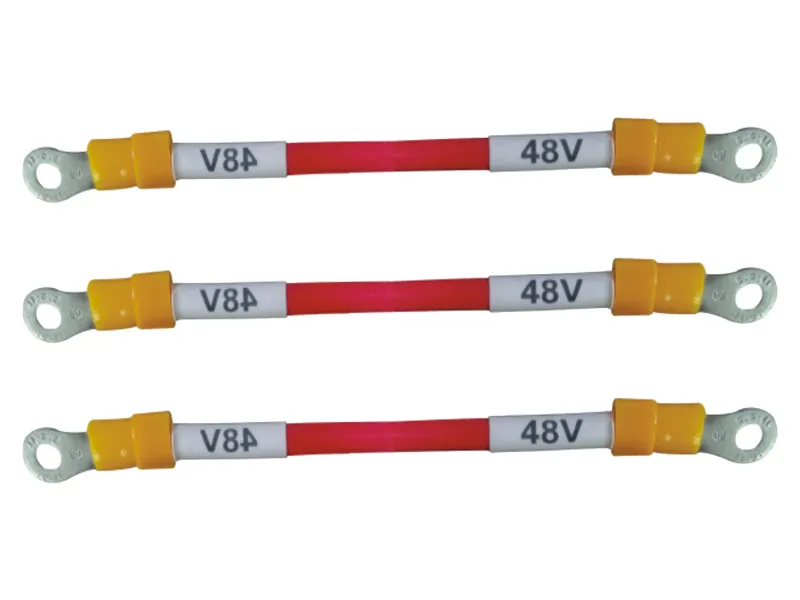

The UV laser engraving system allows for customizable text and patterns on identification sleeves, which can be saved and recalled easily for future production requirements.
Advanced wire feeding with encoder-based compensation ensures accurate stripping and feeding, providing reliable performance across varying wire lengths.
The built-in fault detection system displays real-time alerts on a user-friendly touch screen, simplifying troubleshooting and reducing downtime during production.
Several senior R&D engineers with more than ten years of experience in wiring harness processing.
Reliable equipment designed to optimize automation and efficiency in wire harness production.
Backed by more than 10 years of experience, we specialize in designing and manufacturing innovative wire processing equipment tailored to meet evolving industry needs.
Customizable features and modifications address unique production requirements across various industries.
