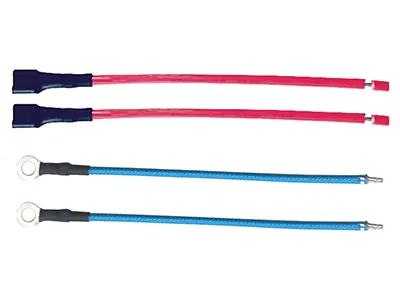

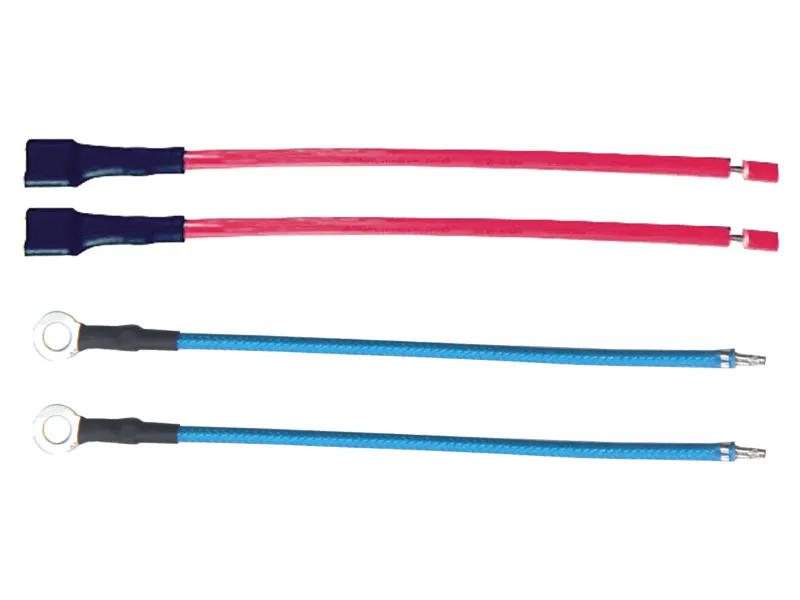

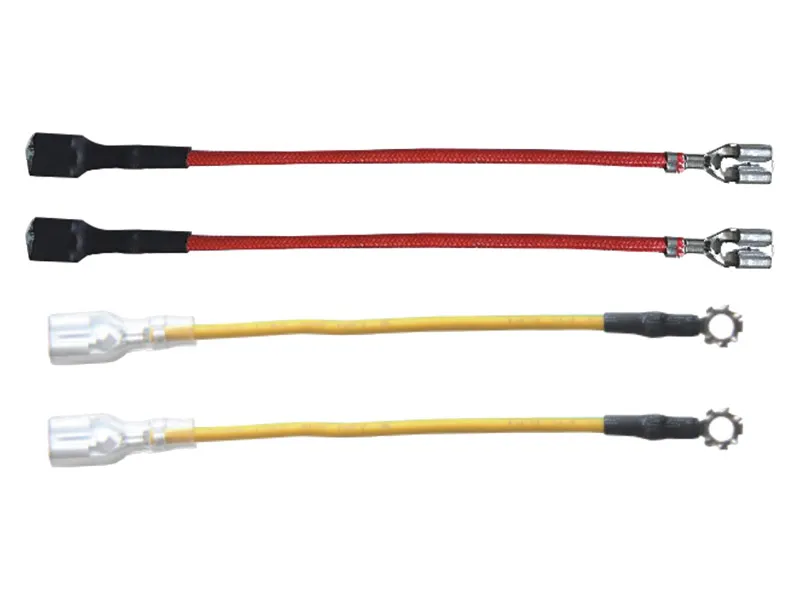

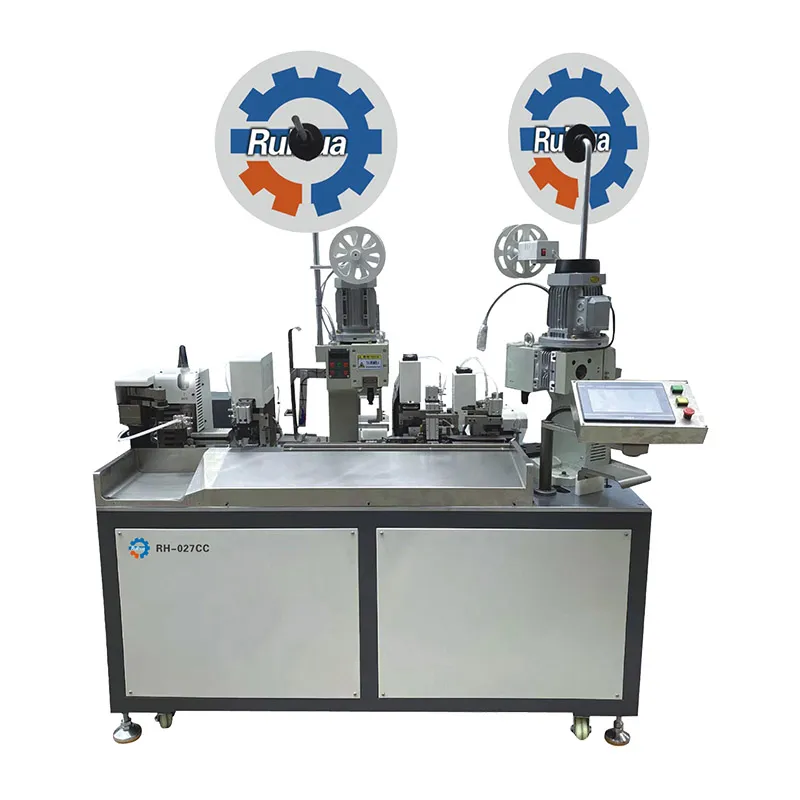

This wire processing system combines multiple wire processing functions into one efficient operation. It performs cutting, stripping, two-sided crimping, and one-sided heat shrinking, with the flexibility to handle single-end operations such stripping and crimping. Compatible with PH, XH, ZH, SCN, SM, VH, straight plug, and ring terminals, it ensures reliable performance for various terminal types. Designed for 14AWG to 20AWG wires, it accommodates materials including PVC, high-temperature cables, Teflon, and halogen-free wires.
| General | Model | RH-027CC-1 | RH-027CC-2 |
|---|---|---|---|
| Dimensions (L×W×H) | 1550×725×1600mm | 1550×725×1600mm | |
| Weight | Approx. 600kg | Approx. 600kg | |
| Power Supply | AC220V 50Hz | AC220V 50Hz | |
| Rated Current | 20A | 20A | |
| Power | 5.5kW | 5.5kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | ||
| Space Requirement | 1×2m | 1×2m | |
| Crimping Force | 2T | 2T | |
| Functions | Crimping Capacity | 2580 wires/hr at 100mm length (depending on the wire length) | 1400-1800 wires/hr at 100mm length (depending on the wire length) |
| Wire Processing | Wire cutting, One-sided stripping, Two-sided stripping, One-sided crimping, Two-sided crimping, One-sided crimping + one-sided heat shrink tube insertion, One-sided crimping and heat shrink tube insertion + one-sided stripping | Wire cutting, Two-sided stripping, One-sided crimping, Two-sided crimping, One-sided crimping + one-sided heat shrink tube insertion, One-sided crimping and heat shrink tube insertion + one-sided stripping, One-sided crimping and sleeve insertion + one-sided heat shrink tube insertion, One-sided crimping and sleeve insertion + one-sided crimping | |
| Control System | LCD display, single-chip microcontroller | ||
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | ||
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | ||
| Operation Control | Wire feeding, cutting, stripping and movement are controlled via touch screen | ||
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure | |
| Application Range | Cutting Length | 68-9999mm | |
| Stripping Length | Front: 0.1-12mm, Rear: 0.1-12mm | ||
| Wire & Cable Type | Electric wire, high temperature cable, Teflon insulated cable (AWG14#-AWG20#) | ||
Equipped with a servo motor for high precision, accurate positioning, and fast processing speeds, ensuring consistent results across all wire types.
Designed to handle 14AWG to 20AWG wires, it supports a range of materials, including PVC, Teflon, and halogen-free cables, offering adaptability for various applications.
Fitted with encoder-based wire feeding compensation improves accuracy during stripping and feeding, delivering reliable results even with varying wire lengths.
Integrated error monitoring system displays real-time alerts on a touch screen, enabling quick fault detection and reducing downtime for uninterrupted production.
