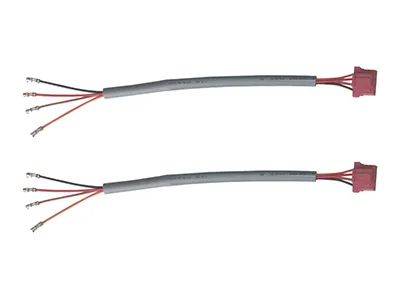

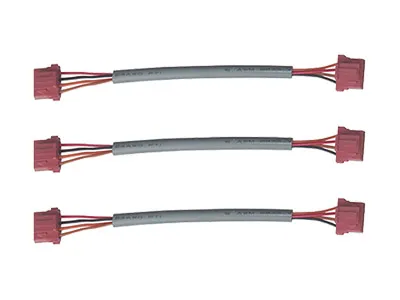

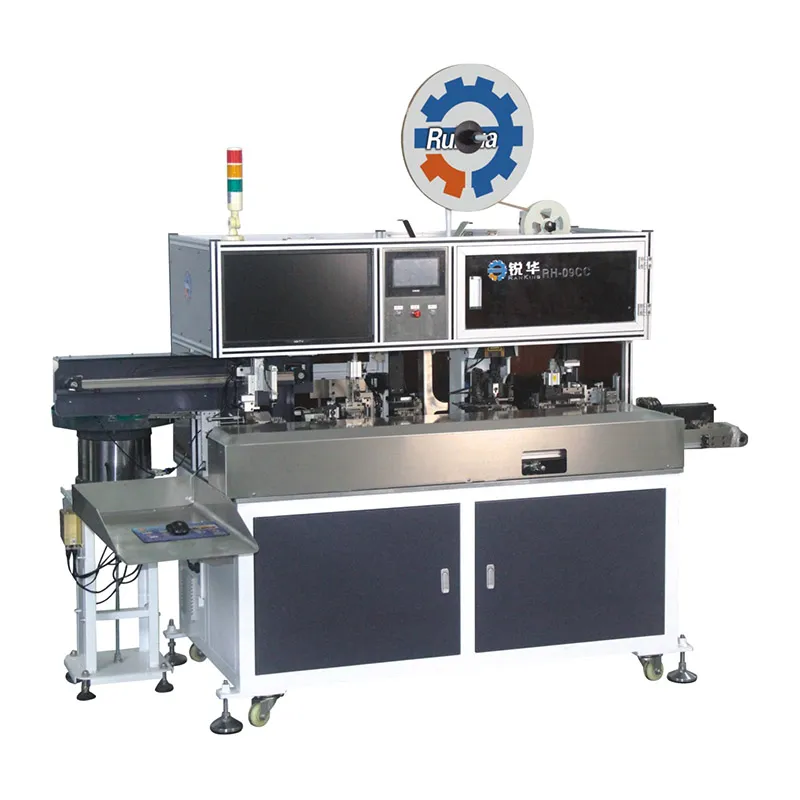

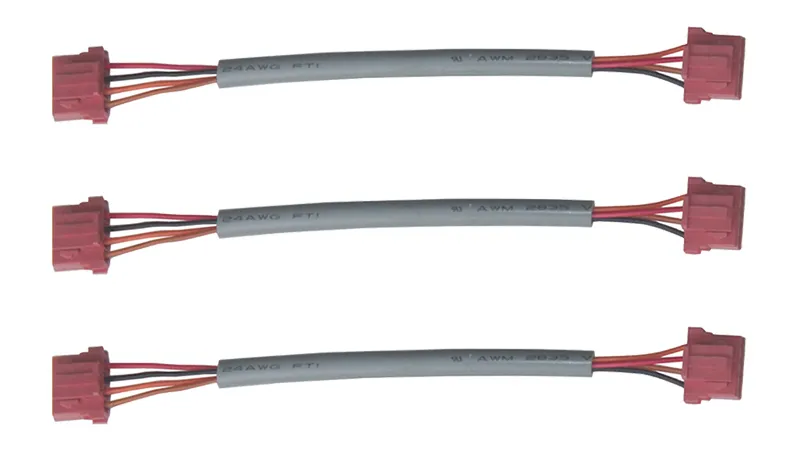

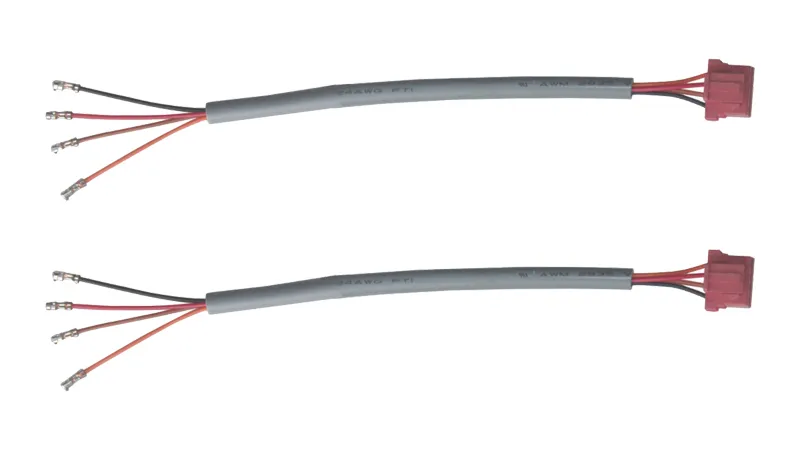

To produce high-quality wire harnesses for multi-core and shielded cables is necessary to employ a streamlined process that integrates multiple cable processing functions. This model of wire terminating machine combines cutting, stripping, terminal crimping, and housing insertion into a single automated workflow. Featuring conveyor-style handling and the capacity for multiple operators to work simultaneously, it offers high production efficiency with minimal investment, making it ideal for large-scale manufacturing operations.
| General | Model | RH-09CC |
|---|---|---|
| Dimensions (L×W×H) | 2380×900×1550mm | |
| Weight | Approx. 500kg | |
| Power Supply | AC220V 50Hz | |
| Rated Current | 10A | |
| Power | 1kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 1×2.5m | |
| Crimping Force | 1.5T | |
| Functions | Housing | Pitch 1.1.25-VH3.96mm |
| Crimping Capacity | Approx. 5000-6500 crimps/hr (depending on number of pins, up to 12pin) | |
| Wire Processing | Cable arrangement (using fixtures), cutting, stripping, crimping and housing insertion | |
| Fixtures Recycling | Automatic recycling | |
| Control System | PLC control, servo motor | |
| Operation Control | Wire cutting, stripping, crimping and housing insertion are controlled via touch screen, with full digital control | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure |
| Vision Inspection | Inspection of copper wire, crimp terminal, color, and terminal housing | |
| Application Range | Stripping Length at Side A | 1-5mm |
| Wire & Cable Type | Multi-core cable, shielded cable | |
| Max. Wire Width | 30mm | |
| Max. Pins of Ribbon Cable | 2-12pin |
The touch screen control system enables precise adjustments for cutting length, stripping depth, terminal positioning, and housing insertion, providing ease of use and efficient setup.
Equipped with an integrated error monitoring system that displays real-time alerts on a touch screen, allowing operators to quickly identify and resolve issues, minimizing downtime during production.
Several senior R&D engineers with more than ten years of experience in wiring harness processing.
Reliable equipment designed to optimize automation and efficiency in wire harness production.
Backed by more than 10 years of experience, we specialize in designing and manufacturing innovative wire processing equipment tailored to meet evolving industry needs.
Customizable features and modifications address unique production requirements across various industries.
