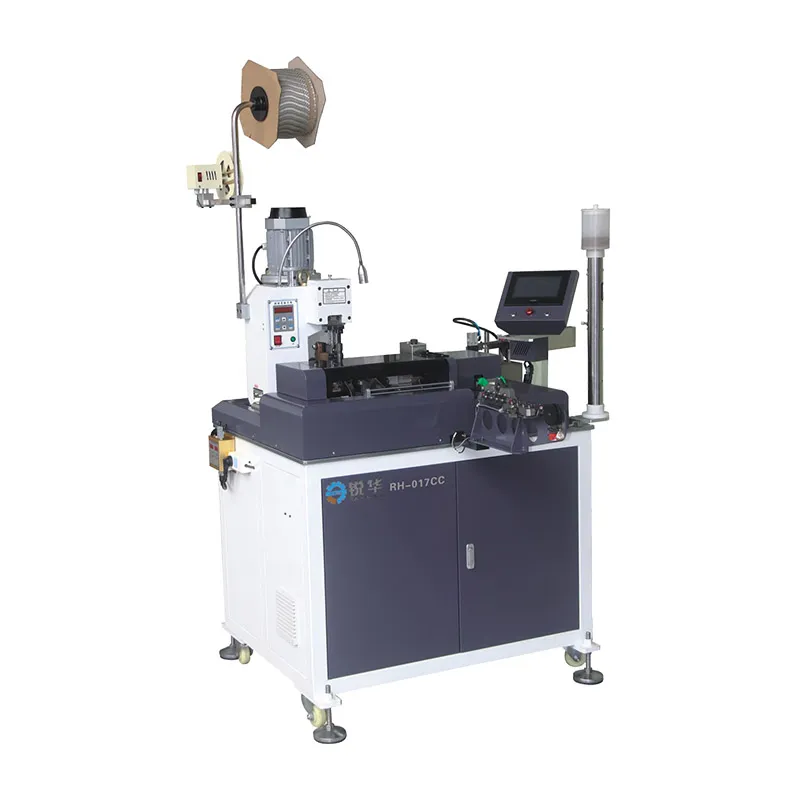

This wire tinning and terminating machine integrates cutting, half stripping, one-sided crimping, and tinning operations into a unified workflow. It can process up to 3,500 wires per hour, handling tasks such as single-end crimping combined with twisting or tinning and half stripping on the opposite end. Ideal for electronic and single conductor wires, it offers flexibility for a variety of production requirements.
| General | Model | RH-017CC |
|---|---|---|
| Dimensions (L×W×H) | 1450×950×1600mm | |
| Weight | Approx. 350kg | |
| Power Supply | AC220V 50Hz | |
| Rated Current | 15A | |
| Power | 3.5kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 1×1.5m | |
| Crimping Force | 2T | |
| Functions | Crimping Capacity | 3500 pcs/hr |

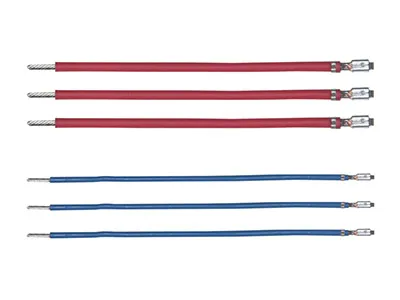

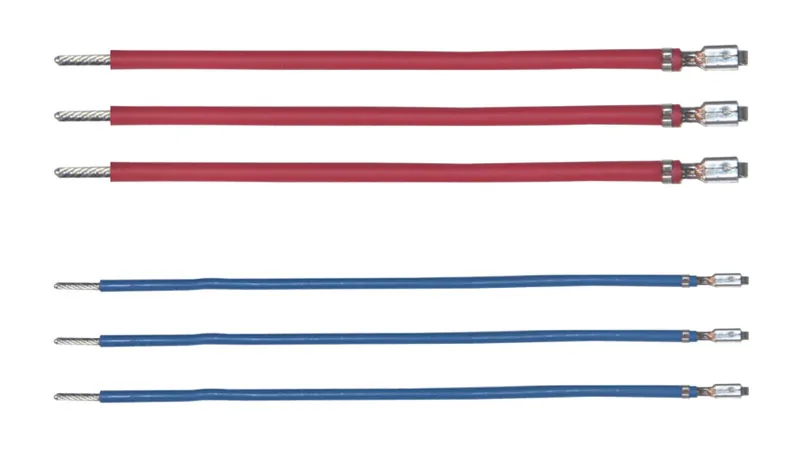

| Wire Processing | Side A: terminal crimping by using ball screw mechanism Side B: tinning, 90 degree bend tinning |
|
| Two-sided half stripping, One-sided crimping + one-sided twisting, One-sided crimping + one-sided half stripping, One-sided crimping + one-sided twisting and tinning | ||
| Split type blade cutting and stripping Twisting by motor rotation |
||
| Control System | PLC control, servo motor | |
| Operation Control | Wire feeding, cutting and stripping are controlled via touch screen, with full servo control | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure (qualified and non-qualified products are placed separately) |
| Application Range | Cutting Length | 30-9999mm |
| Stripping Length | Front: 0-10mm, Rear: 0-15mm | |
| Wire & Cable Type | Electric wire, solid core cable (AWG32#-AWG18#) |
Utilizes a wire feeding wheel with fixed-length control and servo-coordinated screw slides for stripping and terminal crimping, ensuring precision on both ends.
High-precision dual-head crimping mechanism combines automatic wire feeding, straightening, fixed-length cutting, stripping, and crimping into a single system, suitable for advanced wire harness production.
Features a 2-ton cast terminal press with precision, wear-resistant guides, supporting horizontal and vertical terminal cutting with waste material collection.
Integrated error monitoring system displays real-time alerts on a user-friendly touch screen, simplifying troubleshooting and minimizing production delays.
Several senior R&D engineers with more than ten years of experience in wiring harness processing.
Reliable equipment designed to optimize automation and efficiency in wire harness production.
Backed by more than 10 years of experience, we specialize in designing and manufacturing innovative wire processing equipment tailored to meet evolving industry needs.
Customizable features and modifications address unique production requirements across various industries.
