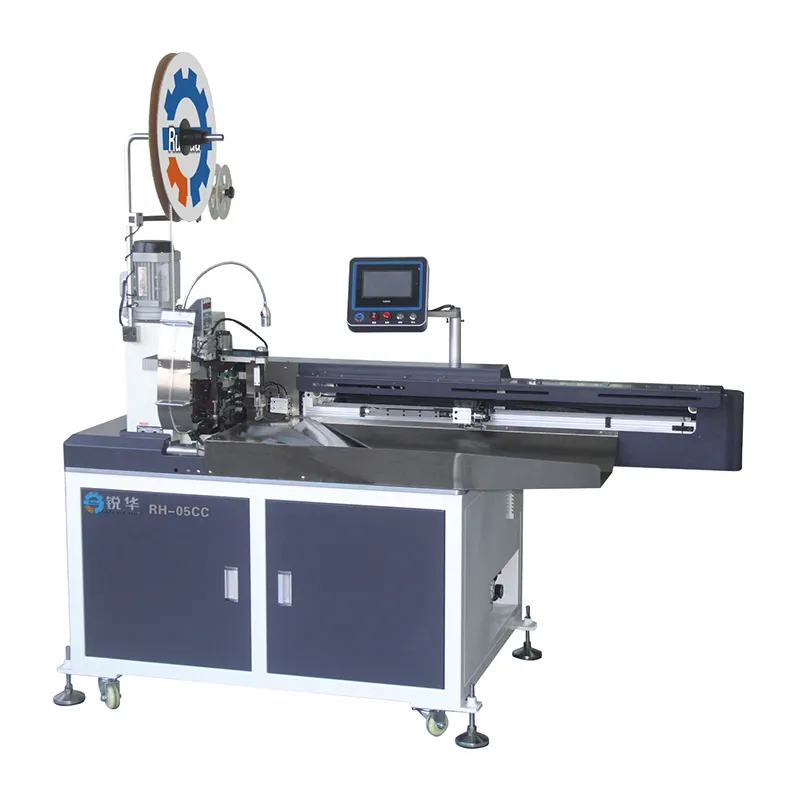

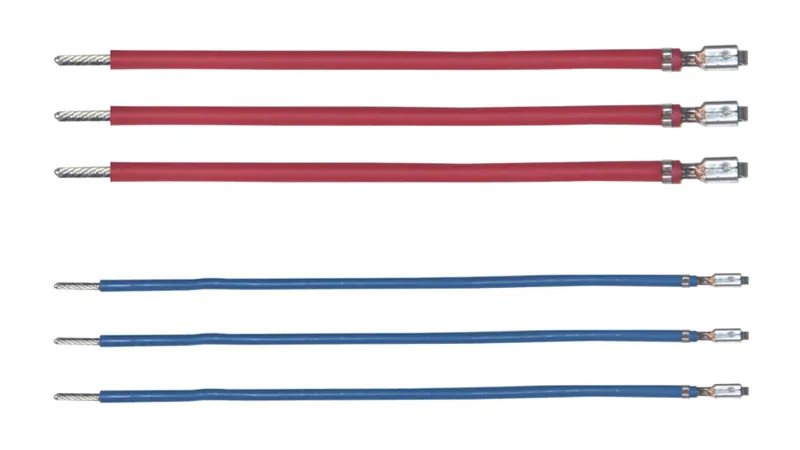

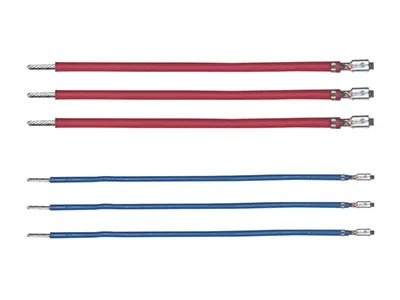

Capable of processing up to eight wires at the same time, our 8-wire two-sided tinning and one-sided terminal crimping machines combine multiple operations such as cutting, stripping, tinning, and crimping into a unified workflow. Whether tinning one or both ends, crimping a single terminal, or handling partial and double-sided stripping, they offer flexibility for complex wire harness applications. Its adaptability to high-temperature wires, electronic wires, and Teflon-coated wires ensures these wire processing machines meet the demands of various industries.
| General | Model | RH-05CC |
|---|---|---|
| Dimensions (L×W×H) | 2500×1000×1550mm | |
| Weight | Approx. 550kg | |
| Power Supply | AC220V 50Hz | |
| Rated Current | 10A | |
| Power | 3kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 1.5×2.5m | |
| Crimping Force | 2T | |
| Functions | Crimping Capacity | 8000-11000 wires/hr (depending on the wire length) |
| Wire Processing | Wire cutting, One-sided full stripping, Two-sided full stripping, Two-sided half stripping, One-sided tinning, Two-sided tinning, One-sided crimping, One-sided crimping + one-sided tinning | |
| High-precision crimping, stripping and tinning by using ball screw mechanism | ||
| Control System | PLC control, servo motor | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Operation Control | Wire feeding, cutting, stripping and movement are controlled via touch screen, with full servo control. | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure |
| Application Range | Cutting Length | 35-1000mm (customizable) |
| Stripping Length | Front: 1-6mm, Rear: 1-8mm | |
| Stripping Length at Side B | 1-8mm | |
| Wire & Cable Type | Electric wire, high temperature cable, Teflon insulated cable (AWG30#-AWG18#) | |
| Max. Number of Pin | 8pin |
The touch screen interface allows precise adjustments to wire feeding length, cutting length, stripping depth, insulation depth, crimping position, and tinning settings, making it easy to customize operations.
Robotic clamping ensures consistent alignment and wire stability throughout processing, delivering reliable results every time.
Compatible with 16AWG to 32AWG wires, including PVC, silicone, Teflon-coated, and halogen-free materials, making it suitable for diverse production needs.
Fitted with an integrated error monitoring system that displays real-time alerts on the touch screen, simplifying troubleshooting and minimizing downtime.
Several senior R&D engineers with more than ten years of experience in wiring harness processing.
Reliable equipment designed to optimize automation and efficiency in wire harness production.
Backed by more than 10 years of experience, we specialize in designing and manufacturing innovative wire processing equipment tailored to meet evolving industry needs.
Customizable features and modifications address unique production requirements across various industries.
