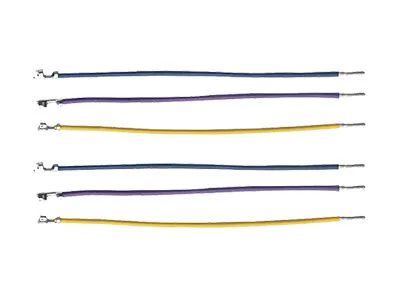

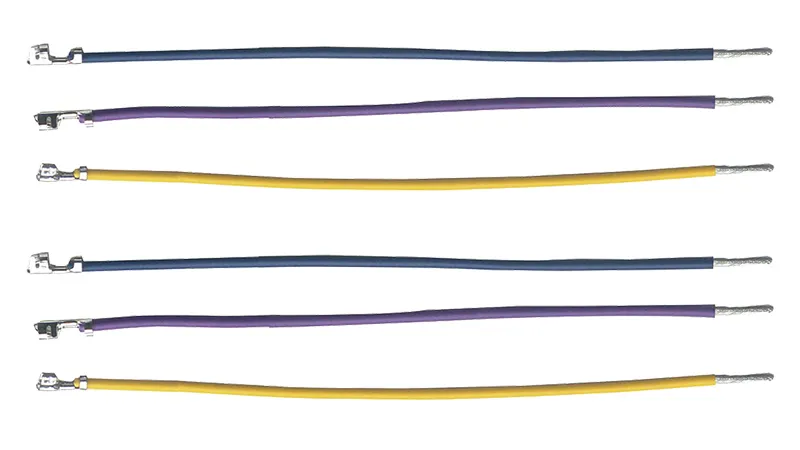

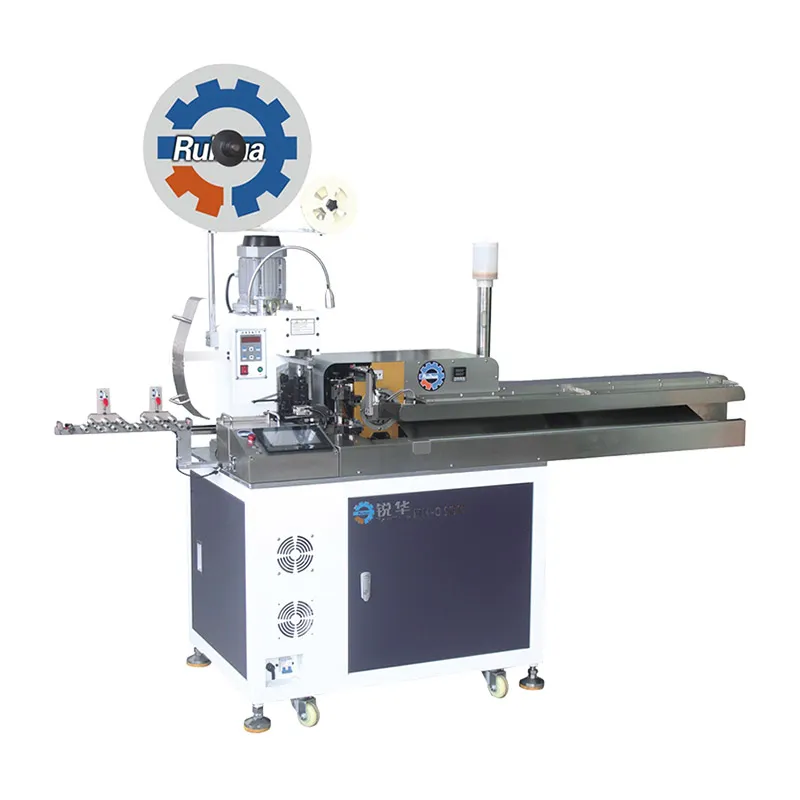

Processing five wires at once is a challenging task that demands precision and versatility. To tackle this task, we developed the 5-wire one-sided tinning and terminal crimping machine which is capable of handling single-sided and double-sided stripping, half stripping, one-sided crimping, and tinning with twisting, achieving a capacity of up to 6,000 wires per hour. Designed for 16AWG to 32AWG wires, these wire tinning and terminating machines are compatible with PVC, silicone, Teflon-coated, and halogen-free materials, making it adaptable to a wide range of applications.
| General | Model | RH-01CC |
|---|---|---|
| Dimensions (L×W×H) | 1200×720×1500mm | |
| Weight | Approx. 500kg | |
| Power Supply | AC220V 50Hz | |
| Power | 3kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Crimping Force | 2T | |
| Functions | Crimping Capacity | Approx. 6000 wires/hr (depending on the wire length) |
| Wire Processing | Wire cutting, One-sided full stripping, Two-sided full stripping, Two-sided half stripping, One-sided crimping, One-sided twisting and tinning | |
| 90 degree bend crimping, High-precision stripping and tinning by using ball screw mechanism | ||
| Control System | PLC control, servo motor | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Operation Control | Wire feeding, cutting, stripping and crimping are controlled via touch screen, with full servo control | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure |
| Application Range | Cutting Length | 30-650mm (customizable) |
| Stripping Length | Front: 1-7mm Rear: 1-10mm | |
| Wire & Cable Type | Electric wire, solid core cable (high temperature cable, Teflon insulated cable, silicone insulated cable, halogen-free cable) (AWG30#-AWG18#) | |
| Max. Number of Pin | 5pin |
Main parameters such as feeding length, cutting length, stripping length, insulation depth, terminal position, and tinning are adjusted through an intuitive touch screen, simplifying operation and reducing setup time.
A robotic clamping mechanism ensures consistent wire lengths and precise alignment during processing.
The built-in error detection system provides real-time alerts on a touch screen, enabling fast troubleshooting and minimizing production interruptions.
Several senior R&D engineers with more than ten years of experience in wiring harness processing.
Reliable equipment designed to optimize automation and efficiency in wire harness production.
Backed by more than 10 years of experience, we specialize in designing and manufacturing innovative wire processing equipment tailored to meet evolving industry needs.
Customizable features and modifications address unique production requirements across various industries.
