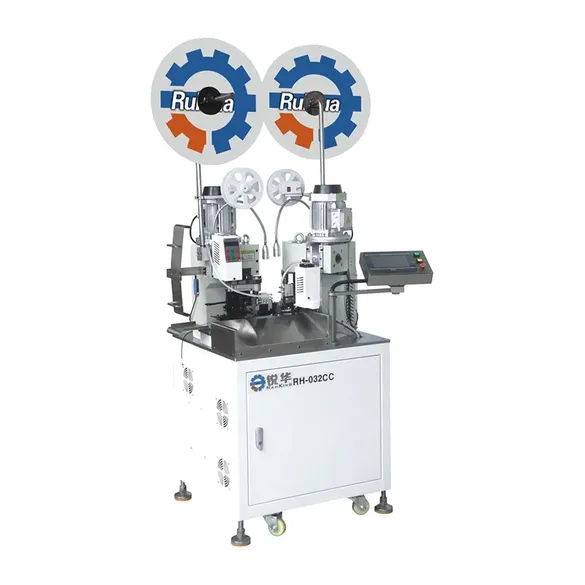

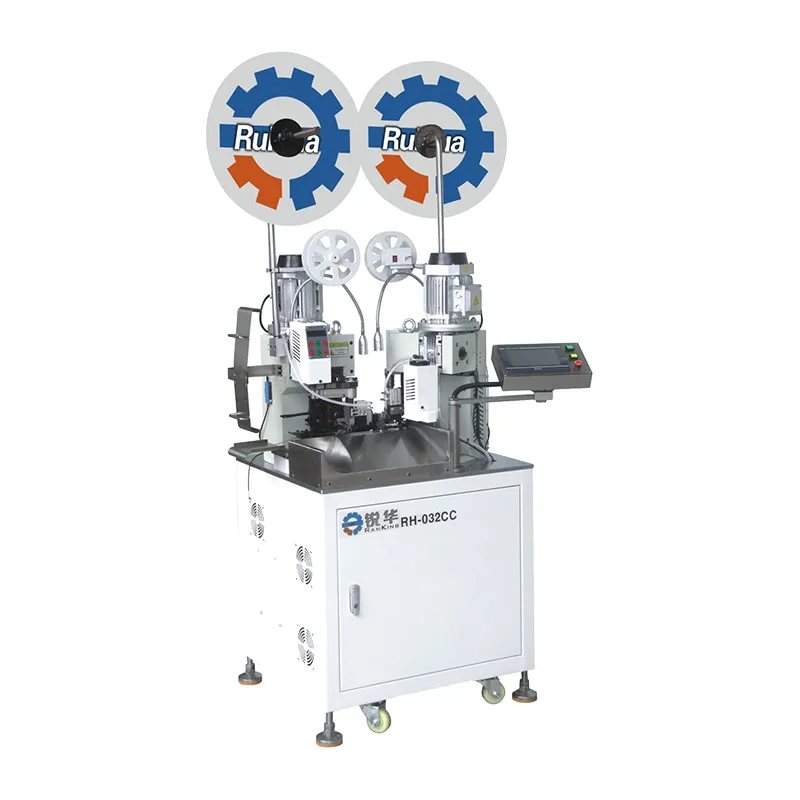

Our general-purpose wire crimping equipment supports a variety of wire processing functions, including cutting, double-sided and single-sided crimping, double-sided and single-sided stripping, as well as combining crimping on one end with stripping on the other. Its versatile capabilities make it ideal for diverse wire harness production needs, providing consistent and precise results.
| General | Model | RH-032CC |
|---|---|---|
| Dimensions (L×W×H) | 650×750×1500mm | |
| Weight | Approx. 450kg | |
| Power Supply | AC220V 50Hz | |
| Rated Current | 10A | |
| Power | 2.8kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 1×1m | |
| Crimping Force | 2T | |
| Functions | Crimping Capacity | 3500 wires/hr at 100mm length (depending on the wire length) |

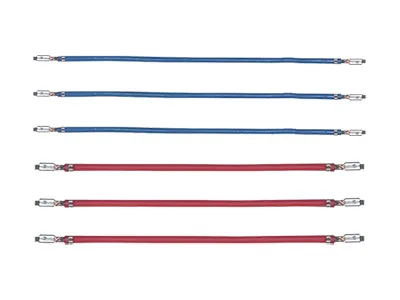

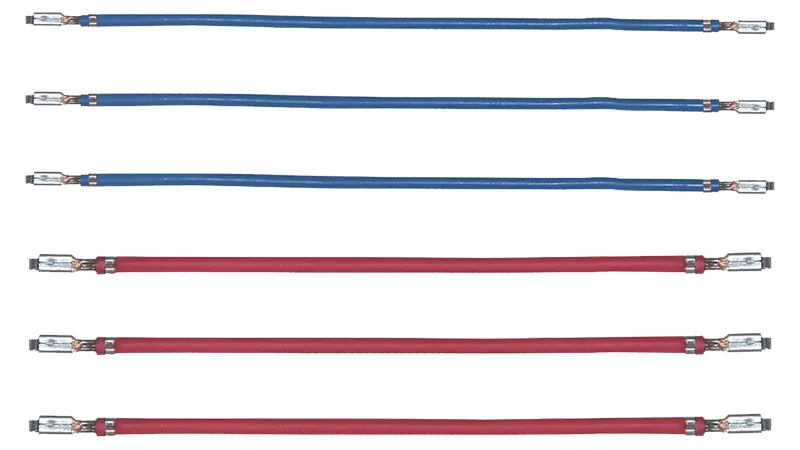

| Wire Processing | Wire cutting, One-sided stripping, Two-sided stripping, One-sided crimping, Two-sided crimping, One-sided crimping + one-sided stripping | |
| Control System | LCD display, single-chip microcontroller | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Operation Control | Wire feeding, cutting, stripping and movement are controlled via touch screen | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure |
| Application Range | Cutting Length | 40-9999mm |
| Stripping Length | Front: 1-10mm, Rear: 1-10mm | |
| Wire & Cable Type | Electric wire, high temperature cable, Teflon insulated cable (AWG24#-AWG18#) |
Controlled via a Chinese LCD microcontroller, enabling quick and efficient setup and adjustments.
Integrated with a real-time error monitoring system that displays alerts on a touch screen, simplifying troubleshooting and ensuring minimal downtime.
Several senior R&D engineers with more than ten years of experience in wiring harness processing.
Reliable equipment designed to optimize automation and efficiency in wire harness production.
Backed by more than 10 years of experience, we specialize in designing and manufacturing innovative wire processing equipment tailored to meet evolving industry needs.
Customizable features and modifications address unique production requirements across various industries.
