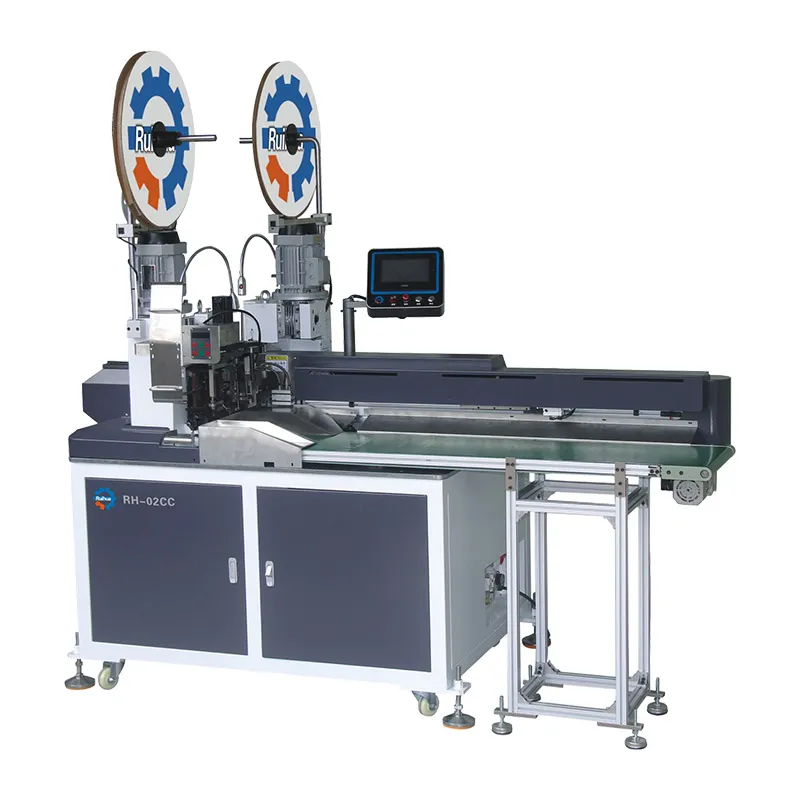

Efficient wire harness production relies on efficient wire processing machinery capable of managing multiple tasks simultaneously. Our two-sided terminal crimping equipment processes up to 8 wires in one operation, handling cutting, stripping, insulation application, crimping, and tinning with precision. Its automation minimizes manual intervention, ensuring consistent results for high-demand industries.
| General | Model | RH-02CC |
|---|---|---|
| Dimensions (L×W×H) | 2000×1000×1550mm | |
| Weight | Approx. 520kg | |
| Power Supply | AC220V 50Hz | |
| Power | 4kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Crimping Force | 2T | |
| Functions | Crimping Capacity | Approx. 8000 wires/hr (depending on the wire length) |

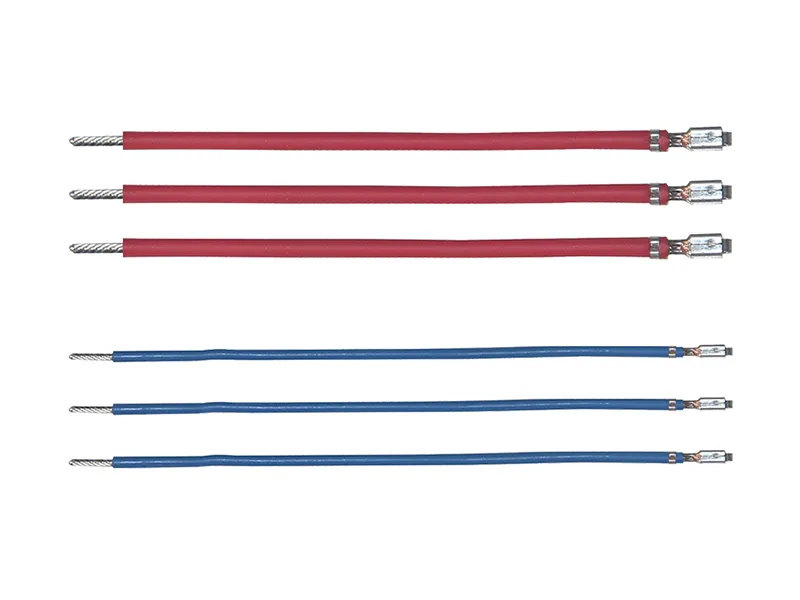

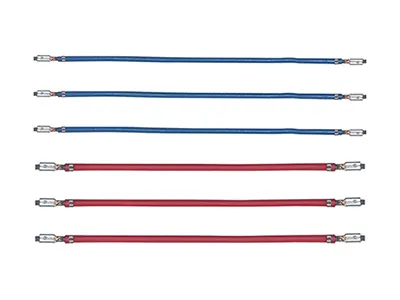

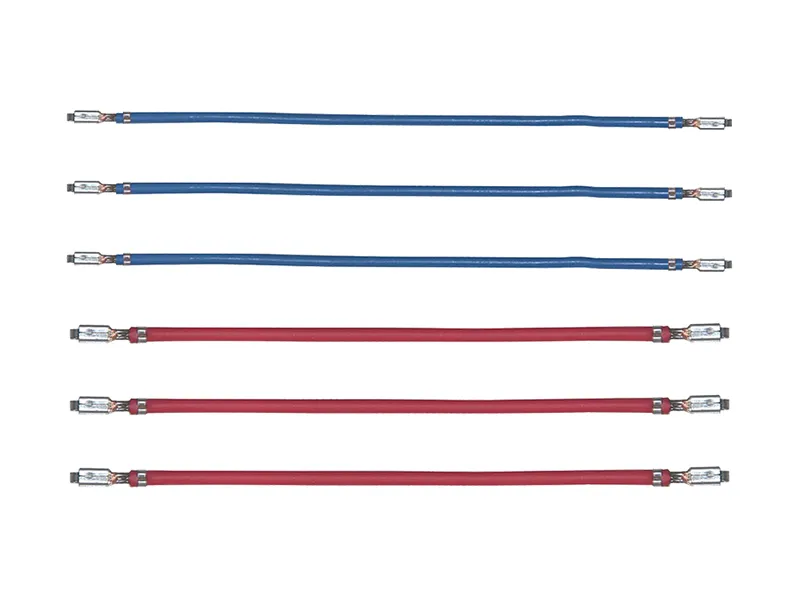

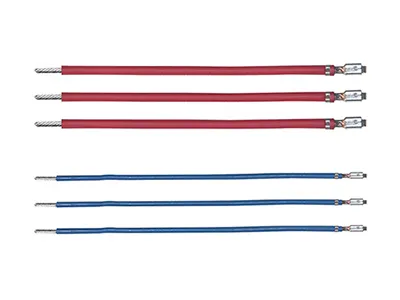

| Wire Processing | Wire cutting, One-sided full stripping, Two-sided full stripping, Two-sided half stripping, One-sided crimping, Two-sided crimping | |
| Control System | PLC control, servo motor | |
| Die Change | OTP crimping applicator for 8 wires, easy and quick die changing | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Operation Control | Wire feeding, cutting, stripping and movement are controlled via touch screen, with full servo control | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure |
| Application Range | Cutting Length | 35-1000mm (customizable) |
| Stripping Length | Front: 1-7mm Rear: 1-9mm | |
| Wire & Cable Type | Electric wire, solid core cable (high temperature cable, Teflon insulated cable, silicone insulated cable, halogen-free cable) (AWG30#-AWG18#) | |
| Max. Number of Pin | 8pin |
High-precision terminal crimping and wire stripping achieved through a dual-screw linear movement system, utilizing Taiwan PBI screws for enhanced reliability.
Robotic clamping ensures stable wire lengths and precise alignment during processing, maintaining consistency throughout production.
Real-time error detection system with alerts displayed on a user-friendly touch screen, simplifying troubleshooting and improving operational efficiency.
Several senior R&D engineers with more than ten years of experience in wiring harness processing.
Reliable equipment designed to optimize automation and efficiency in wire harness production.
Backed by more than 10 years of experience, we specialize in designing and manufacturing innovative wire processing equipment tailored to meet evolving industry needs.
Customizable features and modifications address unique production requirements across various industries.
