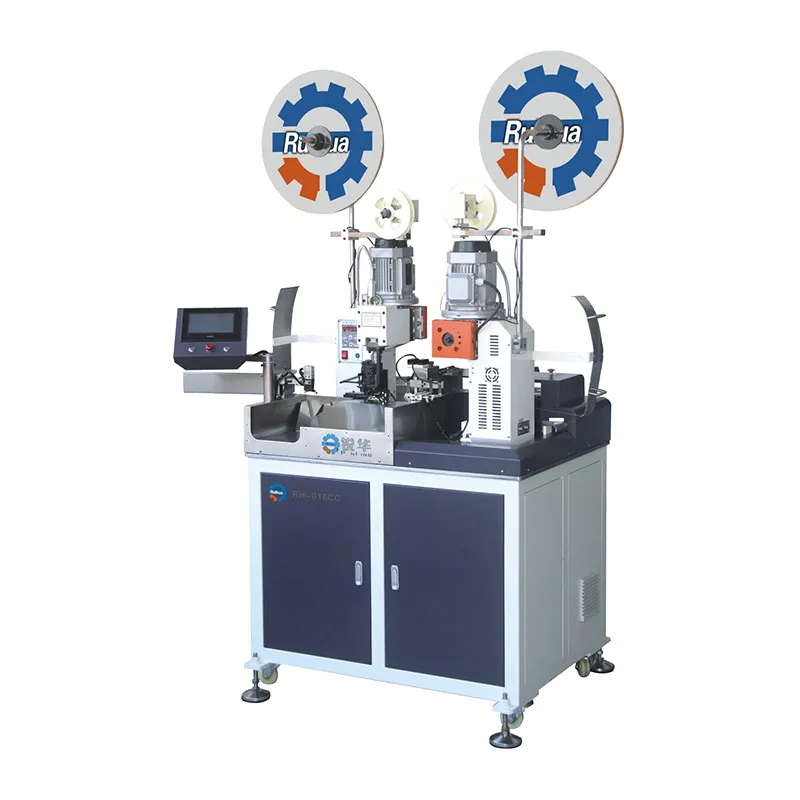

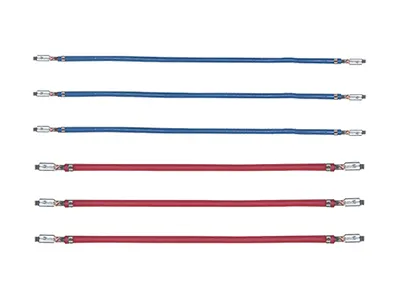

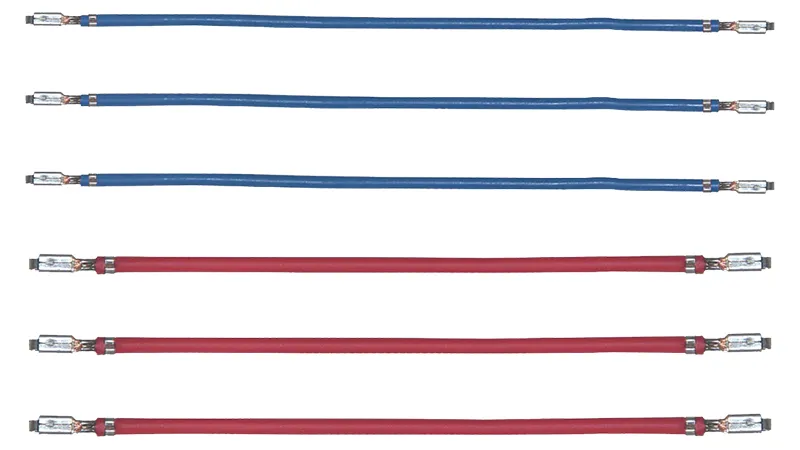

High-precision wire processing requires efficient equipment that can handle multiple tasks seamlessly. Designed for fine wires, our two-sided crimping machinery integrates automatic wire feeding, straightening, cutting, stripping, and terminal crimping into one cohesive process. These wire terminating machines provide precise control over every step, including cutting depth, stripping length, insulation placement, and terminal crimp depth, ensuring reliable and consistent results for demanding applications.
| General | Model | RH-016CC |
|---|---|---|
| Dimensions (L×W×H) | 1450×950×1600mm | |
| Weight | Approx. 480kg | |
| Power Supply | AC220V 50Hz | |
| Rated Current | 15A | |
| Power | 4kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 1×1.5m | |
| Crimping Force | 2T | |
| Functions | Crimping Capacity | 3500 wires/hr |
| Wire Processing | Terminal crimping by using ball screw mechanism (shifting between side A and side B) | |
| Two-sided crimping, Two-sided half stripping, One-sided crimping + one-sided half stripping, One-sided crimping + one-sided twisting | ||
| Split type blade cutting and stripping, Twisting by motor rotation | ||
| Control System | PLC control, servo motor | |
| Operation Control | Wire feeding, cutting and stripping are controlled via touch screen, with full servo control | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure (qualified and non-qualified products are placed separately) |
| Application Range | Cutting Length | 30-9999mm |
| Stripping Length | Front: 0-10mm Rear: 0-15mm | |
| Wire & Cable Type | Electric wire, solid core cable (AWG32#-AWG18#) |
The ball screw mechanism coordinates wire feeding and stripping on both ends, delivering smooth, synchronized, and accurate performance.
Fitted with an efficient terminal cutting structure supports horizontal and direct terminal cutting while automatically collecting waste materials for efficient disposal and a cleaner workspace.
An integrated error detection system displays real-time alerts on a touch screen, enabling quick and easy troubleshooting to minimize downtime.
Several senior R&D engineers with more than ten years of experience in wiring harness processing.
Reliable equipment designed to optimize automation and efficiency in wire harness production.
Backed by more than 10 years of experience, we specialize in designing and manufacturing innovative wire processing equipment tailored to meet evolving industry needs.
Customizable features and modifications address unique production requirements across various industries.
