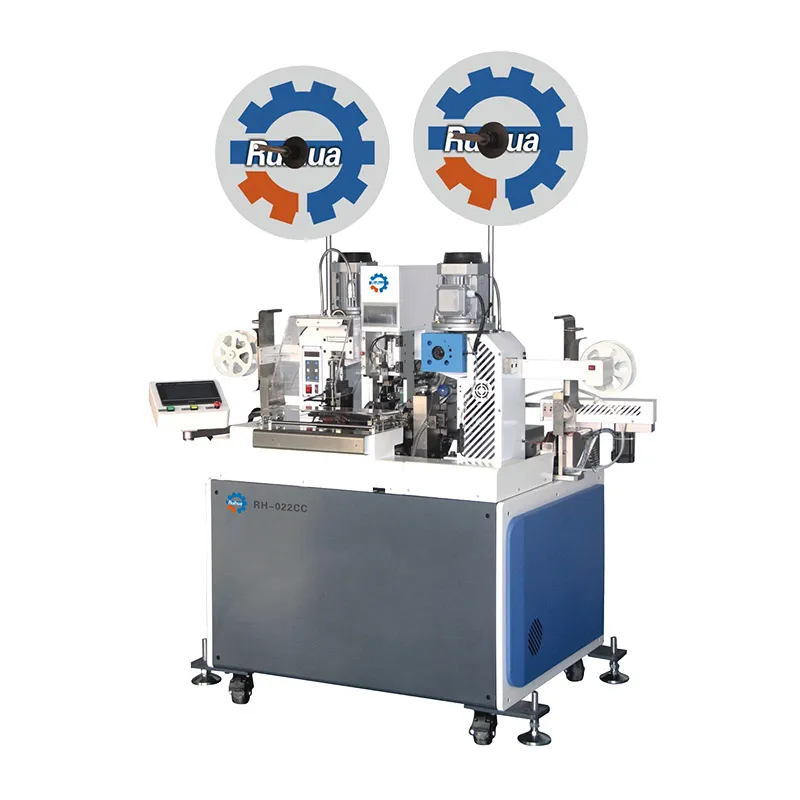

This model of wire terminating machine integrates two-sided crimping and single-sided seal insertion, making it an efficient choice for processing 18AWG-28AWG wires. It is compatible with materials such as PVC, silicone, Teflon, and halogen-free cables, offering flexibility for diverse applications, including high-temperature and moisture-resistant wiring. With a processing capacity of 2,200 wires per hour at 100mm lengths, our 2-sided crimping & 1-sided seal insertion ensures consistent quality and high wire and cable production efficiency.
| General | Model | RH-022CC |
|---|---|---|
| Dimensions (L×W×H) | 1700×920×1580mm | |
| Weight | 600kg | |
| Power Supply | AC220V 50Hz | |
| Rated Current | 20A | |
| Power | 4kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 1×1.8m | |
| Crimping Force | 2T | |
| Functions | Crimping Capacity | 2200 wires/hr at 100mm length (depending on the wire length) |
| Wire Processing | Wire cutting, One-sided stripping, Two-sided stripping One-sided crimping, Two-sided crimping, One-sided crimping + one-sided seal insertion | |
| Control System | LCD display, single-chip microcontroller | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Operation Control | Wire feeding, cutting, stripping and movement are controlled via touch screen, with servo control | |
| Wire Seal Insertion | Wire seal insertion unit | |
| Transmission | Ball screw, guide rail and timing belt | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure |
| Application Range | Cutting Length | 68-9999mm |
| Stripping Length | Front: 0.1-12mm, Rear: 0.1-12mm | |
| Wire & Cable Type | Electric wire, high temperature cable, halogen-free cable, Teflon insulated cable (AWG18#-AWG28#) |
The servo-driven wire feeding system ensures precise synchronization of cutting, stripping, crimping, and seal insertion, providing consistent and reliable results for a variety of wire types.
The three-blade linear structure independently processes the front and rear ends of the wire, efficiently handling both short and long lengths. Integrated debris removal mechanisms maintain a clean workspace for uninterrupted production.
An advanced error monitoring system displays real-time alerts on an intuitive touch screen, making fault detection simple and ensuring smooth, efficient operation.

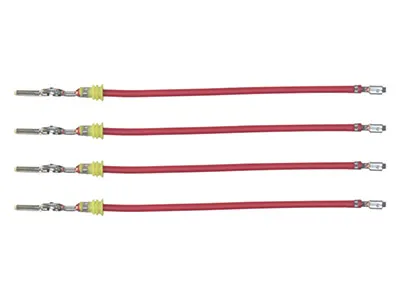

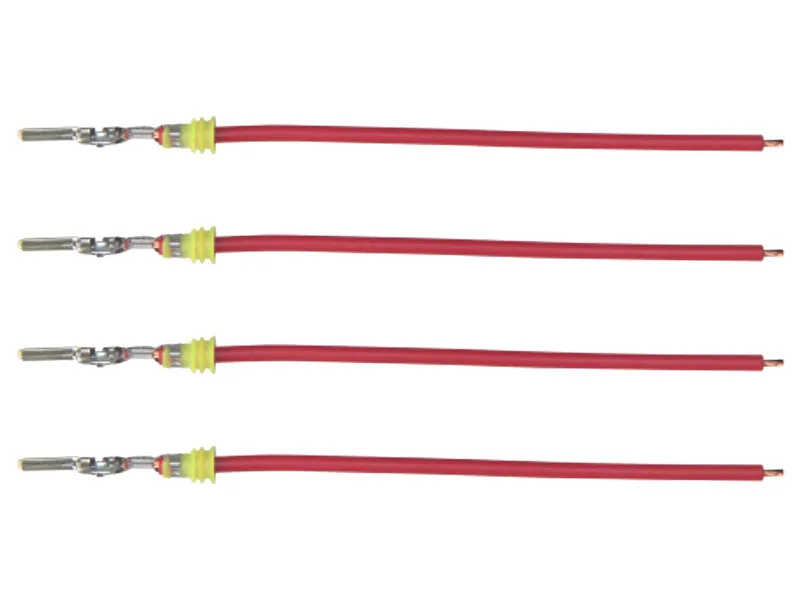

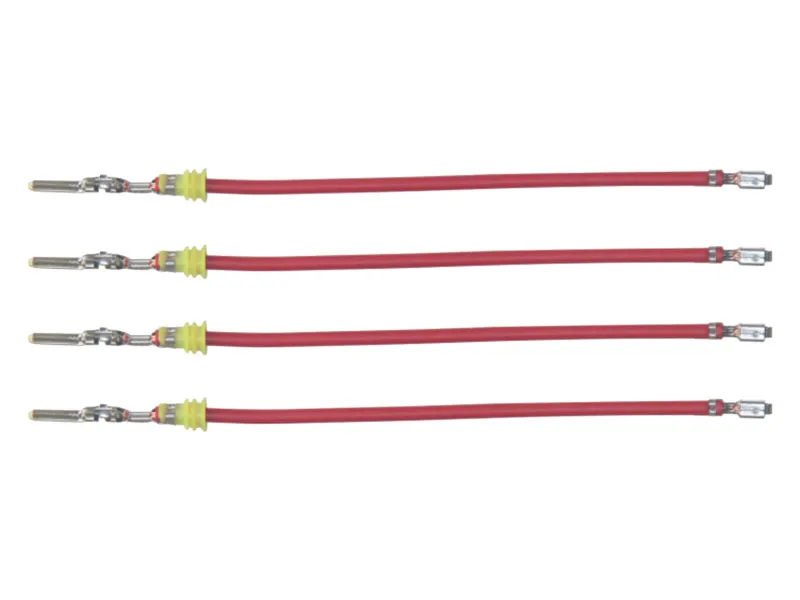

Engineered to handle a variety of tasks, this wire terminating equipment performs wire cutting, stripping, double-sided crimping, and seal insertion efficiently.
Designed to efficiently process electric wires, high-temperature cables, halogen-free wires, and Teflon-insulated cables, this wire terminating machine automates essential steps such as cutting, stripping, crimping, and seal insertion.
Several senior R&D engineers with more than ten years of experience in wiring harness processing.
Reliable equipment designed to optimize automation and efficiency in wire harness production.
Backed by more than 10 years of experience, we specialize in designing and manufacturing innovative wire processing equipment tailored to meet evolving industry needs.
Customizable features and modifications address unique production requirements across various industries.
