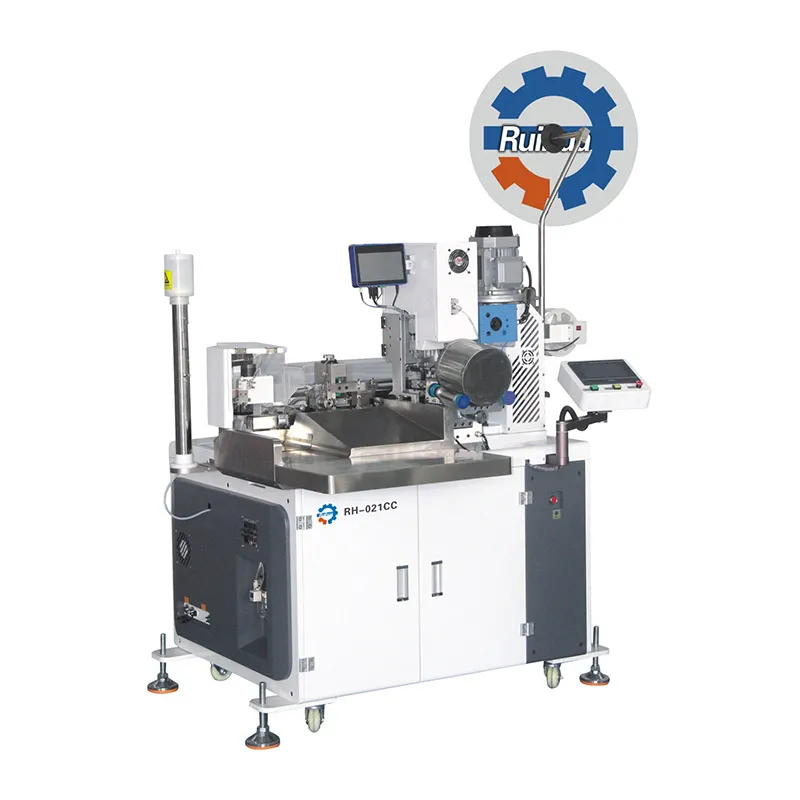

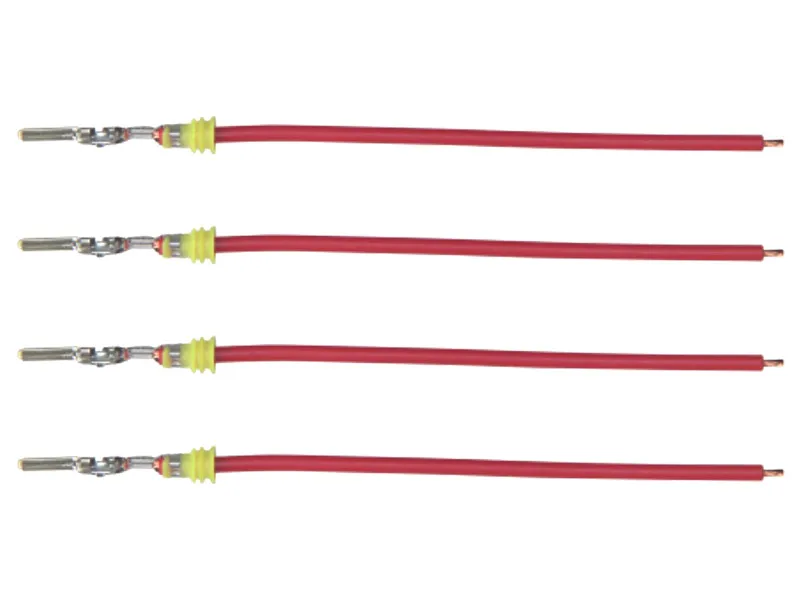

Designed to efficiently process electric wires, high-temperature cables, halogen-free wires, and Teflon-insulated cables, this wire terminating machine automates essential steps such as cutting, stripping, crimping, and seal insertion. Its versatility makes it ideal for handling 18AWG-28AWG wires, offering an enhanced workflow for various wire types, including PVC and silicone cables. Thanks to its adjustable configurations, our 1-sided crimping & seal insertion equipment simplifies processing changes while maintaining high precision.
| General | Model | RH-021CC |
|---|---|---|
| Dimensions (L×W×H) | 1700×920×1580mm | |
| Weight | 600kg | |
| Power Supply | AC220V 50Hz | |
| Rated Current | 20A | |
| Power | 4kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 1×2.2m | |
| Crimping Force | 2T | |
| Functions | Crimping Capacity | 1700 wires/hr at 100mm length (depending on the wire length) |
| Wire Processing | Wire cutting, One-sided stripping, Two-sided stripping, One-sided crimping, One-sided crimping, seal insertion and half stripping, One-sided crimping and seal insertion + one-sided tinning | |
| Control System | LCD display, single-chip microcontroller | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Operation Control | Wire feeding, cutting, stripping and movement are controlled via touch screen, with servo control | |
| Wire Seal Insertion | Wire seal insertion unit | |
| Transmission | Ball screw, guide rail and timing belt | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure |
| Application Range | Cutting Length | 50-9999mm (standard: leaving glue space 17mm, special: shorten to 12mm) |
| Stripping Length | Front: 0.1-15mm, Rear: 0.1-18mm | |
| Wire & Cable Type | Electric wire, high temperature cable, halogen-free cable, Teflon insulated cable (AWG18#-AWG28#) |
Facilitates consistent wire feeding and cutting with a servo-driven guide system, ensuring precise stripping and seal insertion for enhanced reliability.
Uses a refined 3-blade linear structure for independent operations of wire cutting and stripping, capable of managing both short and long wires with integrated mechanisms to remove debris for clean processing.
Real-time error detection and monitoring are displayed on an intuitive touchscreen, enabling easy troubleshooting and minimal downtime.

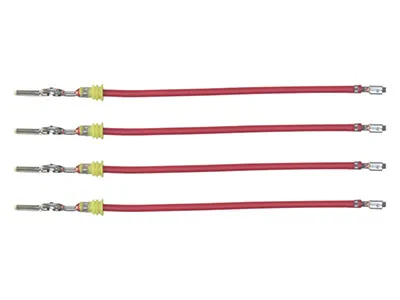

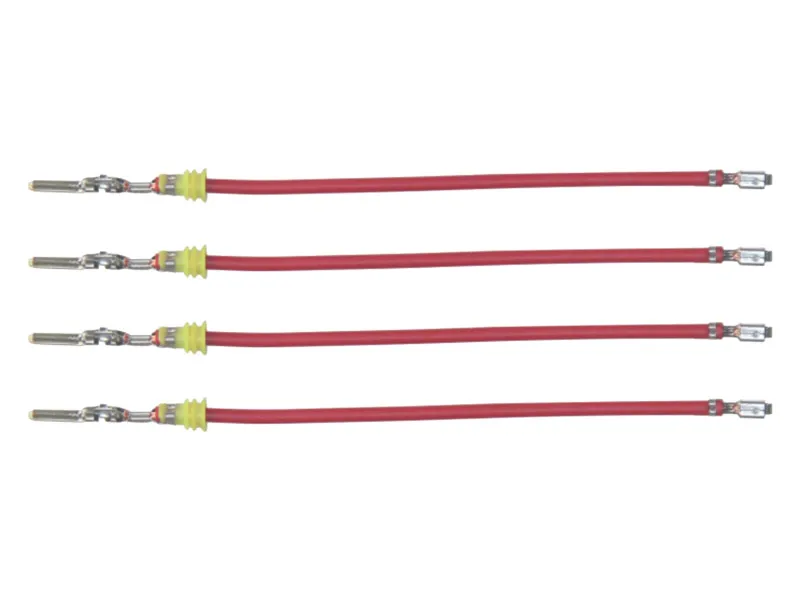

This model of wire terminating machine integrates two-sided crimping and single-sided seal insertion, making it an efficient choice for processing 18AWG-28AWG wires.
Engineered to handle a variety of tasks, this wire terminating equipment performs wire cutting, stripping, double-sided crimping, and seal insertion efficiently.
