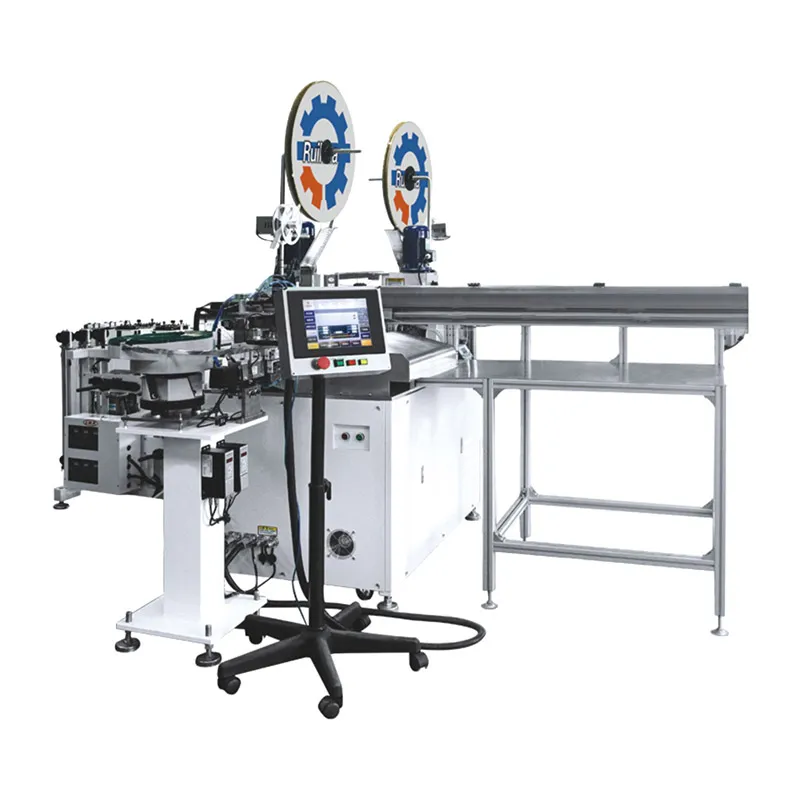

Cable assembly processes demand precision and efficiency, especially when handling diverse wire configurations. To tackle this challenge our 2-sided crimping & 1-sided seal insertion/housing insertion machine integrates multiple operations, including cutting, stripping, 2-sided crimping, and single-sides seal or housing insertion, into one cohesive system. Its ability to handle varying wire lengths and configurations ensures it meets the needs of complex production environments. The inclusion of a ball screw mechanism guarantees high-precision crimping and stripping, making it a reliable choice for 18AWG to 28AWG wires.
| General | Model | RH-014CC |
|---|---|---|
| Dimensions (L×W×H) | 1700×920×1580mm | |
| Weight | Approx. 600kg (without wire pay-off and vibrating plate) | |
| Power Supply | AC220V 50Hz | |
| Rated Current | 20A | |
| Power | 4kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 2.2×1m | |
| Crimping Force | 2T | |
| Functions | Crimping Capacity | 1900 wires/hr at 100mm length (depending on the wire length) |
| Wire Processing | Wire cutting, One-sided stripping, Two-sided stripping, One-sided crimping, Two-sided crimping, One-sided crimping + one-sided seal insertion, One-sided crimping and seal insertion + one-sided crimping, One-sided housing insertion | |
| High-precision crimping, stripping and tinning by using ball screw mechanism | ||
| Control System | LCD display, single-chip microcontroller | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Operation Control | Wire feeding, cutting, stripping and movement are controlled via touch screen | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure |
| Application Range | Cutting Length | 35-1000mm (customizable) |
| Stripping Length | Front: 0.5-15mm Rear: 0.5-7mm | |
| Wire & Cable Type | Electric wire, high temperature cable, Teflon insulated cable (AWG28#-AWG18#) |

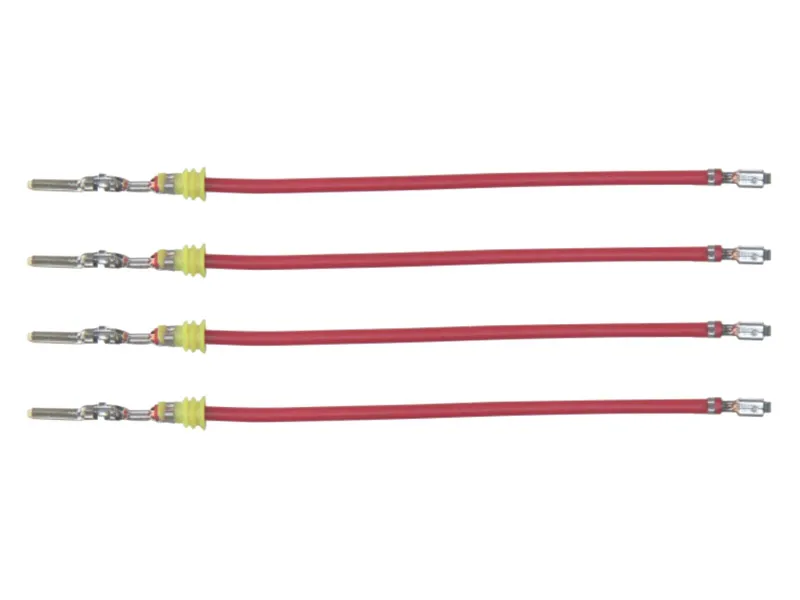

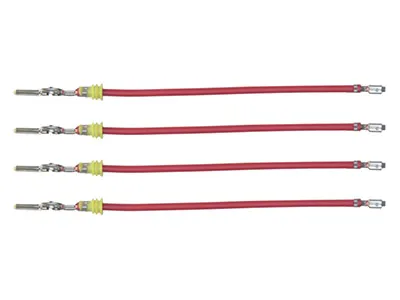

Equipped with robotic clamping to ensure wire stability and precise alignment, enabling consistent results for cutting, stripping, crimping, and housing insertion.

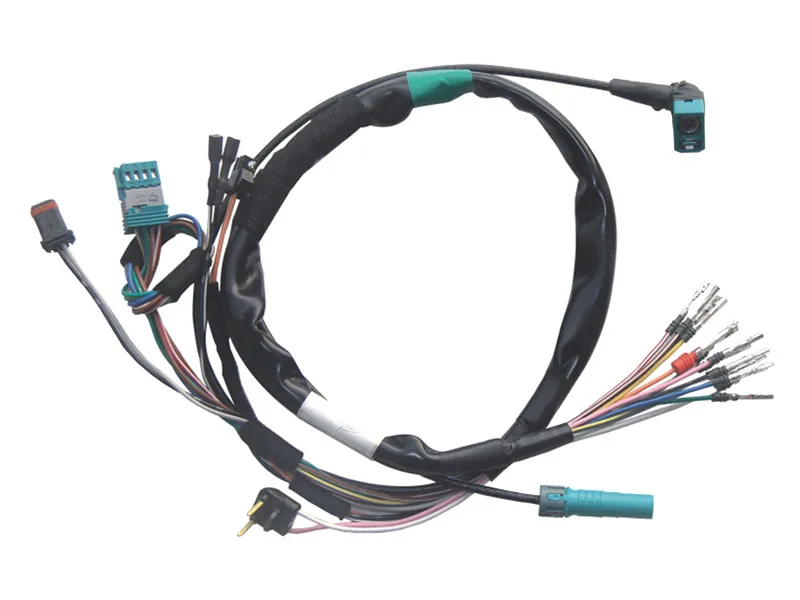

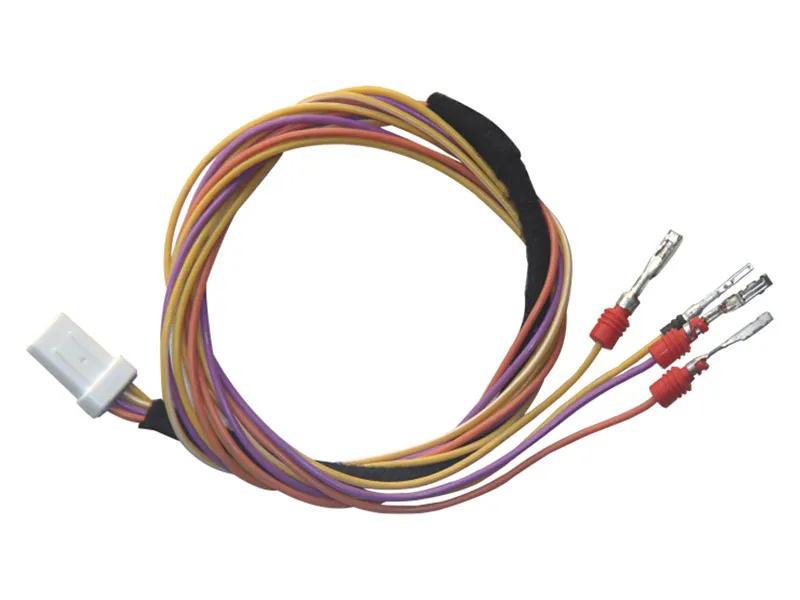

Its adjustable wire length settings allow simultaneous processing of long and short wires, addressing diverse production requirements effectively.
Supports a variety of wire types, including PVC, silicone, Teflon-coated, and halogen-free wires, and is compatible with 18AWG to 28AWG specifications.
Equipped with a ball screw mechanism, it guarantees high precision in crimping, stripping, and tinning operations, ensuring consistent performance.
Fitted with an integrated error monitoring system that provides real-time alerts on the touch screen, simplifying troubleshooting and minimizing downtime for improved production efficiency.
Several senior R&D engineers with more than ten years of experience in wiring harness processing.
Reliable equipment designed to optimize automation and efficiency in wire harness production.
Backed by more than 10 years of experience, we specialize in designing and manufacturing innovative wire processing equipment tailored to meet evolving industry needs.
Customizable features and modifications address unique production requirements across various industries.
