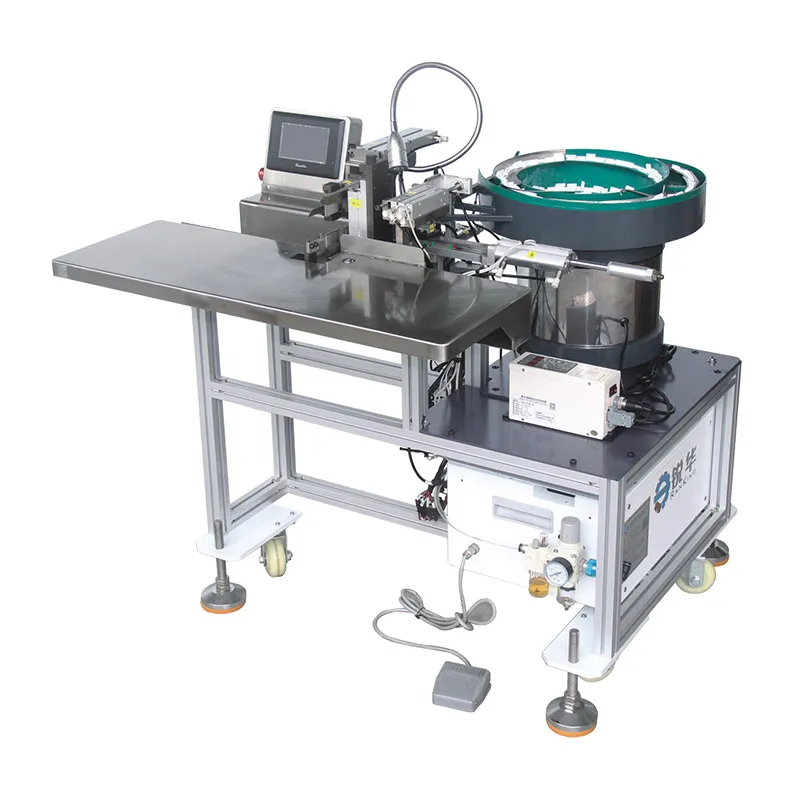

Semi-Automatic Terminal Housing Insertion Machine

RH-301CC semi-automatic terminating machine

Wire processing machine for the production of discrete wire cable assemblies

Automates housing loading and insertion, reducing manual workload. Operators only need to place the housings into the vibration tray and align the ribbon cables on the fixture, while the wire processing machine completes the rest of the process automatically.
Supports adjustments to accommodate different product specifications by fine-tuning the appropriate components, providing strong versatility for various housing sizes.

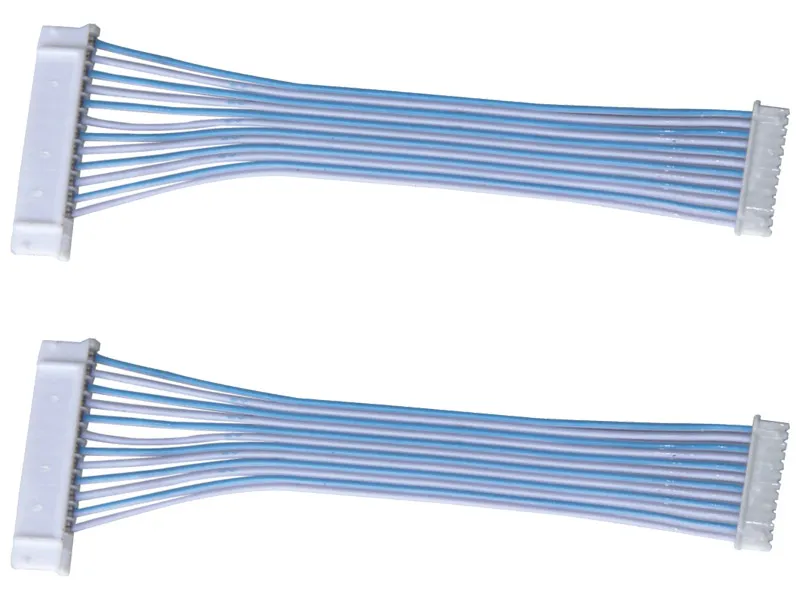

Capable of producing 2-10P housings, meeting a wide range of assembly requirements for discrete wire cable applications.

Technical Data

General	Model	RH-301CC
	Dimensions (L×W×H)	900×900×800mm
	Weight	Approx. 150kg
	Power Supply	AC220V 50Hz
	Rated Current	10A
	Power	500W
	Air Pressure	0.4-0.6Mpa (the air must be filtered and dried)
	Space Requirement	1×1m
Functions	Crimping Capacity	500-900 wires/hr (depending on wire material and feeding speed)
Functions	Number of Pins	2-10P
