Efficient wire processing is crucial for modern wire manufacturing, especially when handling two wires that need to be crimped simultaneously. Our three-sided terminal crimping solution supports single-end, double-end, and multi-terminal crimping operations, accommodating wire gauges from 18AWG to 24AWG. Compatible with PVC, silicone, Teflon-coated, and halogen-free wires, it provides a versatile and reliable option for diverse applications.

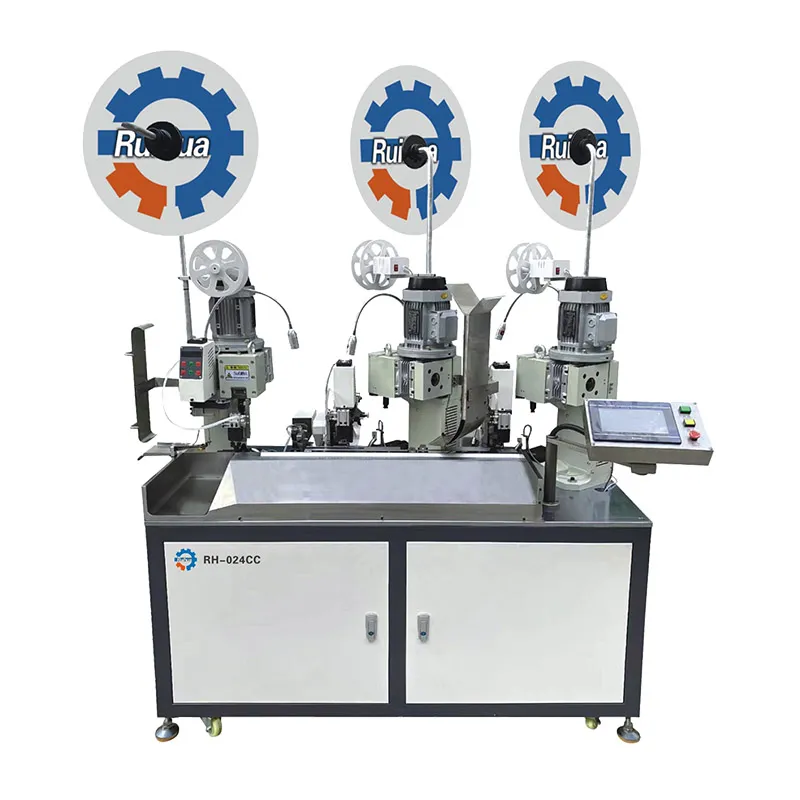

| General | Model | RH-024CC |
|---|---|---|
| Dimensions (L×W×H) | 1430×730×1600mm | |
| Weight | Approx. 500kg | |
| Power Supply | AC220V 50Hz | |
| Rated Current | 15A | |
| Power | 3kW | |
| Air Pressure | 0.4-0.6Mpa (the air must be filtered and dried) | |
| Space Requirement | 1×1.5m | |
| Crimping Force | 2T | |
| Functions | Crimping Capacity | 2600 wires/hr at 100mm length (depending on the wire length) |

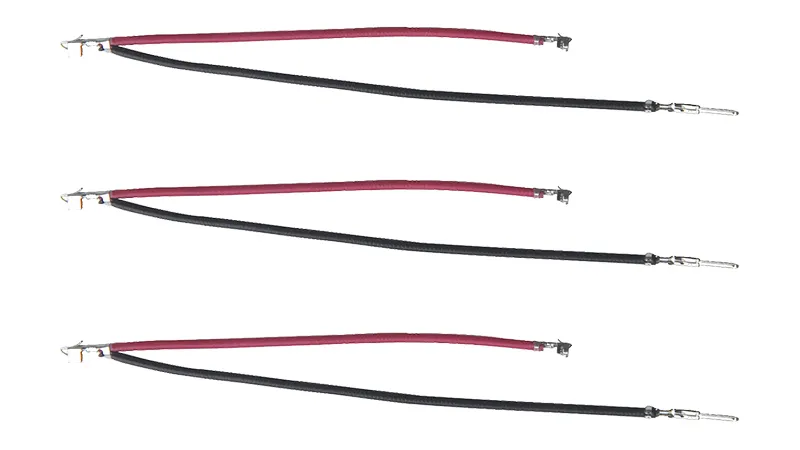

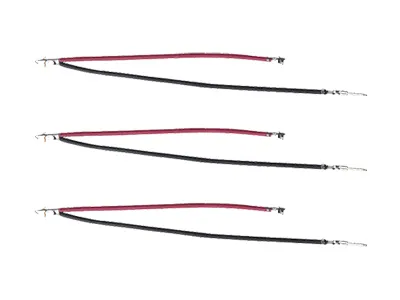

| Wire processing | Wire cutting, One-sided crimping, Two-sided crimping, 2-wire combined crimping with 2 terminals, 2-wire combined crimping with 3 terminals, Reversible crimping, Non-reversible crimping, | |
| Control System | LCD display, single-chip microcontroller | |
| Detection Devices | Crimp test, wire shortage detection, air pressure test, paper winding inspection | |
| Auxiliary Equipment | Crimp terminal waste / wire strip waste collector, paper winder, air storage buffer tank | |
| Operation Control | Wire feeding, cutting, stripping and movement are controlled via touch screen | |
| Optional | Pressure Measuring Device | Used to measure terminal crimping pressure |
| Application Range | Cutting Length | Leaving glue space 50-600mm |
| Stripping Length | 0.1-12mm | |
| Cutting Error | Manually adjustable | |
| Wire & Cable Type | Electric wire, high temperature cable, Teflon insulated cable (AWG18#-AWG24#) |
Equipped with a servo motor to deliver high precision, accurate positioning, and fast processing speeds, ensuring consistent quality in every operation.
Features encoder-based wire feeding compensation, allowing manual adjustments for precise stripping and feeding of wires with varying lengths.
Includes an integrated error monitoring system with real-time alerts displayed on a touch screen, simplifying fault detection and reducing downtime during production.
Handling up to 1,000 wires per hour, our multifunctional crimping solution supports processes such as cutting and crimping configurations such as one-to-two, one-to-three, and one-to-four wire setups. Custom configurations are available to meet specific client requirements.
