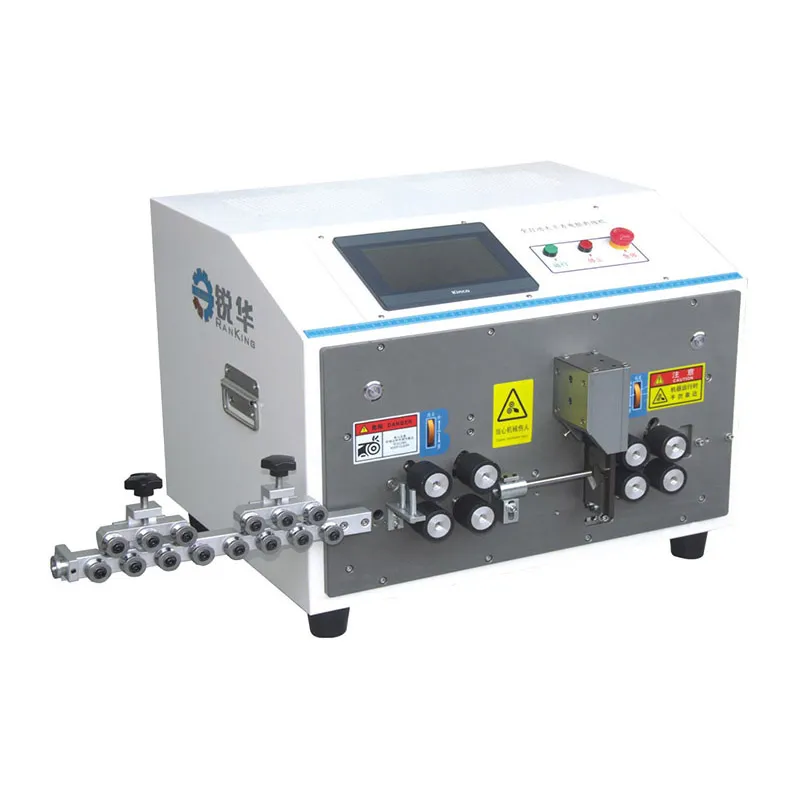

| Model | RH Large Diameter Cable Cutting and Stripping Machine |
| Power Supply | AC220V 50/60HZ |
| Power | Total power: 1.2kW, Rated power: 600W |
| Display | 7inch display screen |
| Capacity | 50-1000mm (1000-2000wires/hr) |
| Wire Diameter | 4-25mm² |
| Cutting Length | 0.1-99999.9mm |

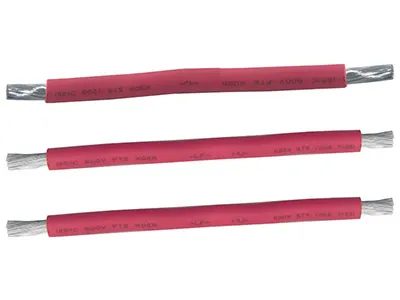

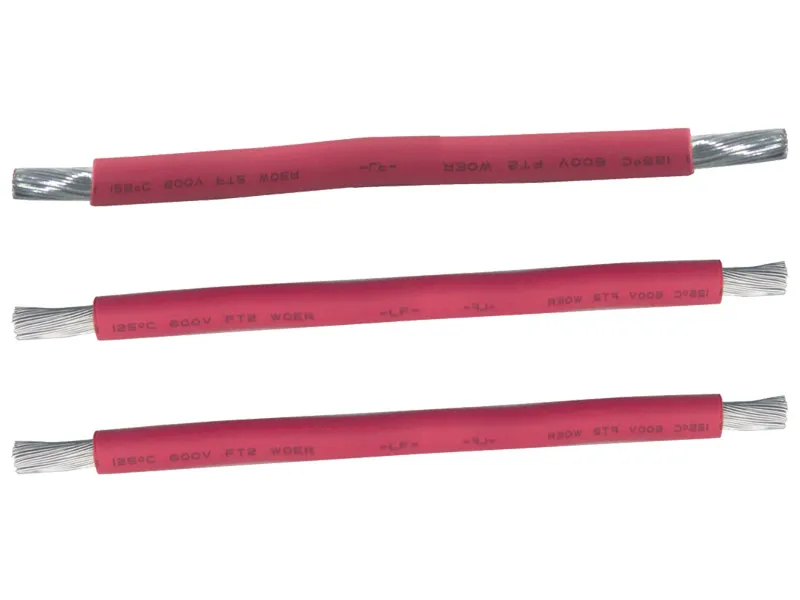

| Stripping Length | Front: 0.1-150mm Rear: 0.1-70mm |
| Stripping Accuracy | Silent hybrid stepper motor 0.01mm |

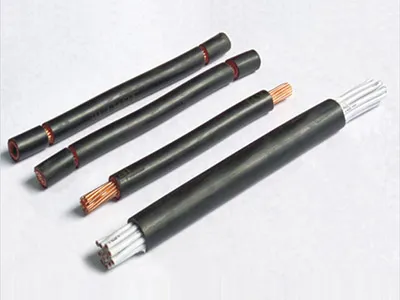

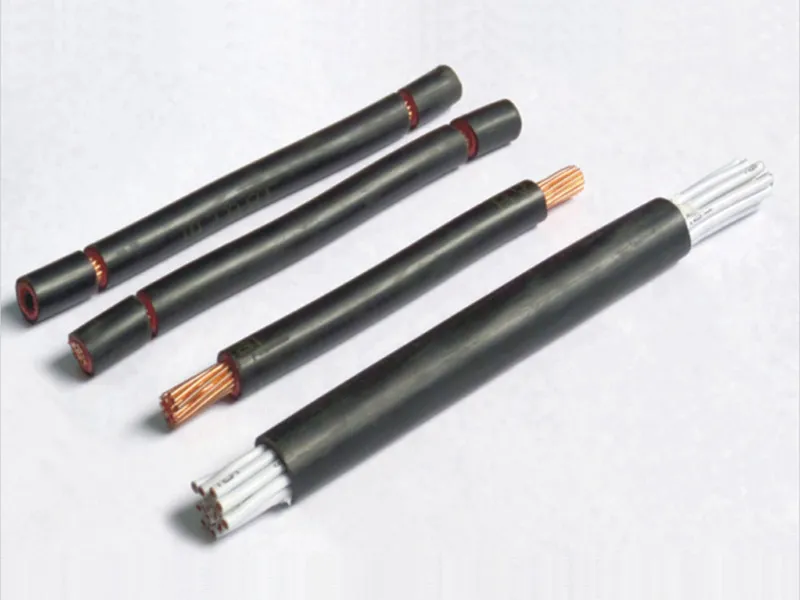

| Middle Stripping | 16 sections (customizable) |
| Dimensions (L×W×H) | 650×570×455mm |
| Weight | 80kg |
| Storage | No. 00-99 (one key copy, one key retrieve, custom rename) |
Several senior R&D engineers with more than ten years of experience in wiring harness processing.
Reliable equipment designed to optimize automation and efficiency in wire harness production.
Backed by more than 10 years of experience, we specialize in designing and manufacturing innovative wire processing equipment tailored to meet evolving industry needs.
Customizable features and modifications address unique production requirements across various industries.
